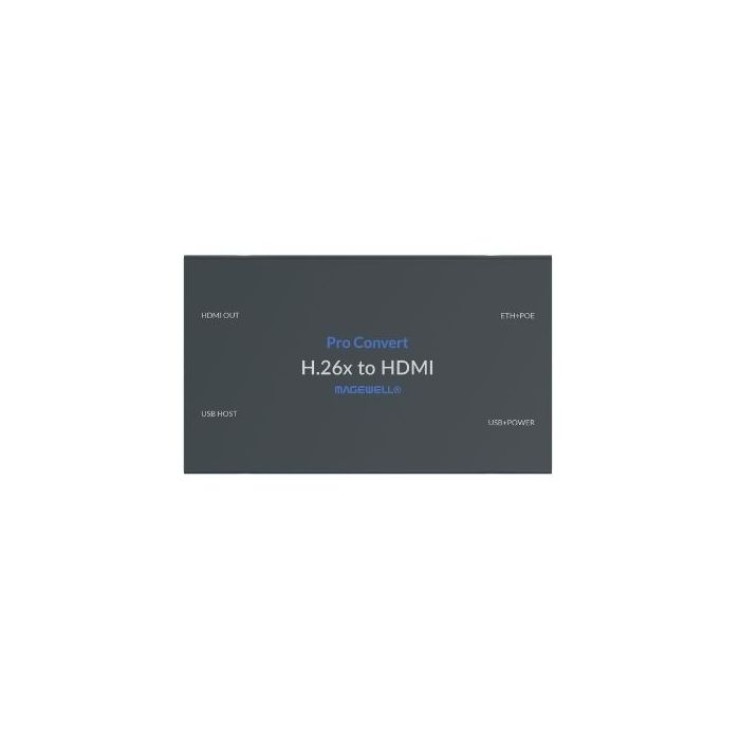

MAGEWELL PRO CONVERT H.26X TO HDMI

Pro Convert family of NDI encoders, built on NewTek’s extremely popular NDI media-over-IP technology, helps users reliably bring traditional video signals into IP-based live production and AV infrastructures. Available in 4K and 1080p60 configurations with a choice of input interfaces, the converters enable users to easily and cost-effectively connect their existing equipment to NDIenabled networks. The ultra-compact Pro Convert devices are ideal for both in-studio and portable field use. Value-added features for live production applications include a 1/4"-20 thread for standard camera-mounting accessories, preview and program tally lights, and NDI-based PTZ camera control. The units can be powered by the included AC adapter or via Power over Ethernet (PoE) for further deployment simplicity.

• Convert multi-protocol IP-based stream into HD HDMI signal.
• Optimize H.26x stream decoding performance and simplify operations.
• Add the function of switching decoding channels by pressing hotkeys on a connected keyboard.
• Fix known defects and optimize the user experience.

Items Included:

• Magewell Pro Convert H.26x to HDMI
• Power Adapter with Set of International Plugs
• USB Type-A to Type-B Cable
• L-Bracket
• Limited 2-Year on Main Unit
• Limited 2-Year Manufacturer Warranty

Certainly, here's the information with proper spacing:

## **More Information**

### **SPECS**

**Inputs/Outputs**

**Video Inputs:**

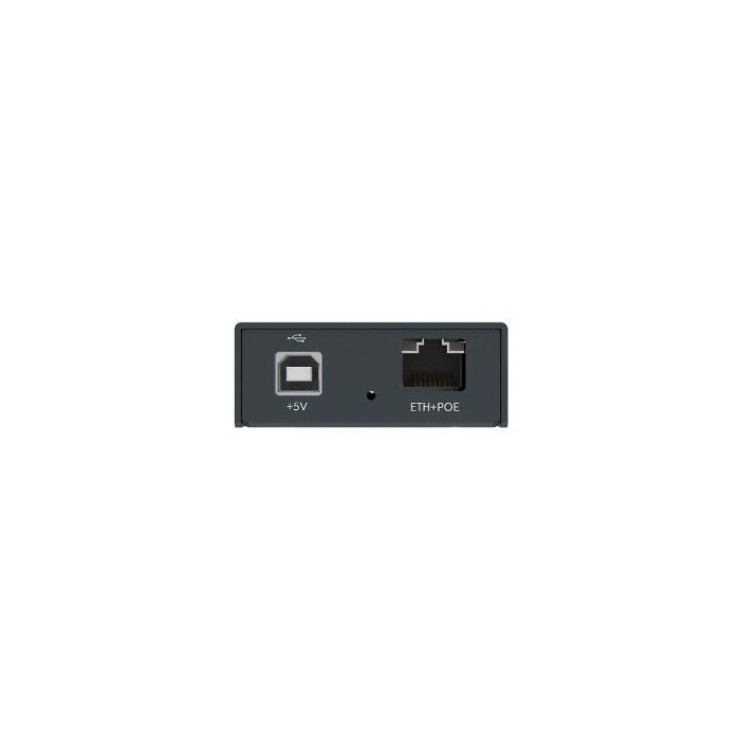

- 1 x RJ45 (RTSP)

**Audio Inputs:**

- None

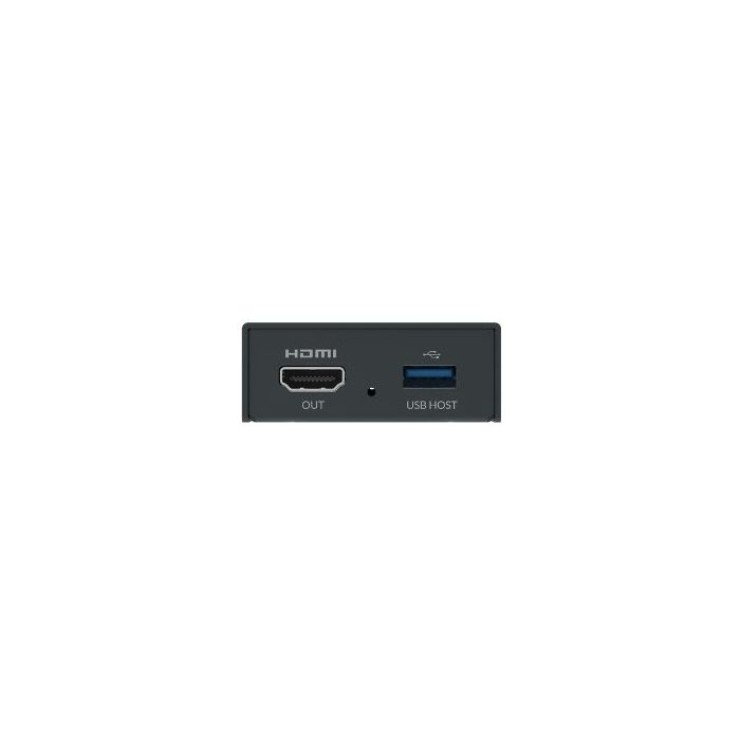

**Video Outputs:**

- 1 x HDMI (HDMI 2.0)

**Audio Outputs:**

- None

**Other I/O:**

- 1 x USB-B Input

- 1 x USB-A Input/Output

**Expansion Slots:**

- None

**Format Support**

**Output Video Format:**

- HDMI

- DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

- UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps

- 1080p Ultrawide (2560 x 1080) 23.98/24/25/29.97/30/50/59.94/60 fps

- 1440p 60/100/120/144 fps

- 1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 fps

- 1080i 50/59.94/60 fps

- 720p 23.98/24/25/29.97/30/50/59.94/60 fps

- 576p 50 fps

- 576i / 625 lines 50 fps

- 480p 59.94/60 fps

- 480i / 525 lines 59.94/60 fps

**Standards**

**EDID Support:**

- Auto-Detect

**HDR Compatibility:**

- Not Specified by Manufacturer

**IP Streaming**

**Video IP Decoding:**

- H.264, H.265: 720 x 480 to 4096 x 2160

**Audio IP Decoding:**

- AAC

**Hardware**

**Media Card Reader:**

- 1 x SD (Unspecified Type)

**Wi-Fi:**

- None

**Power**

**Power I/O:**

- 1 x USB-B Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 5 VDC at 1.6 A (7.5 W)

**Environmental**

**Operating Temperature:**

- 32 to 77°F / 0 to 45°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90% (Non-Condensing)

**General**

**Dimensions:**

- 4.6 x 2.6 x 0.9" / 117.5 x 66.7 x 23.4 mm

**Packaging Info**

**Package Weight:**

- 1.475 lb

**Box Dimensions (LxWxH):**

- 8.4 x 4.6 x 2.7"
