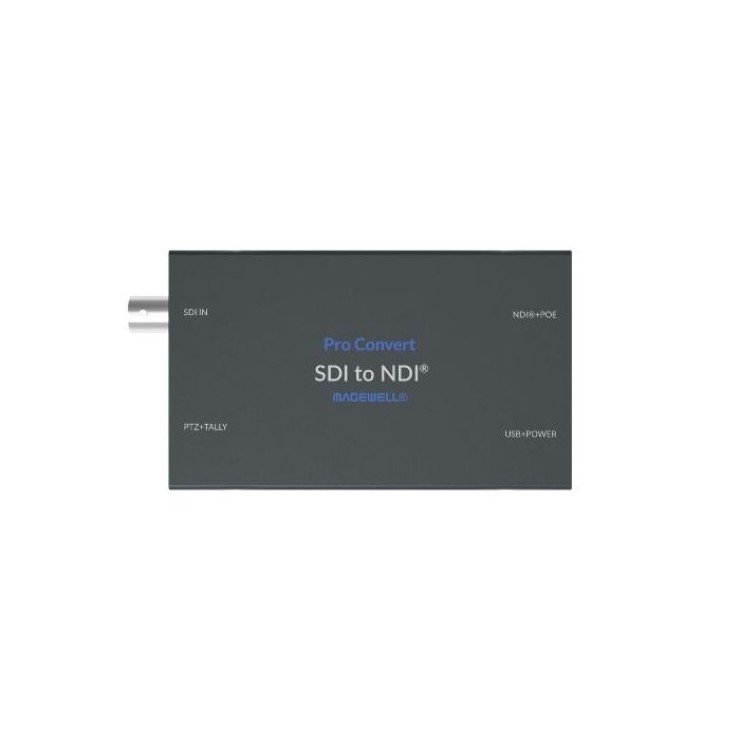

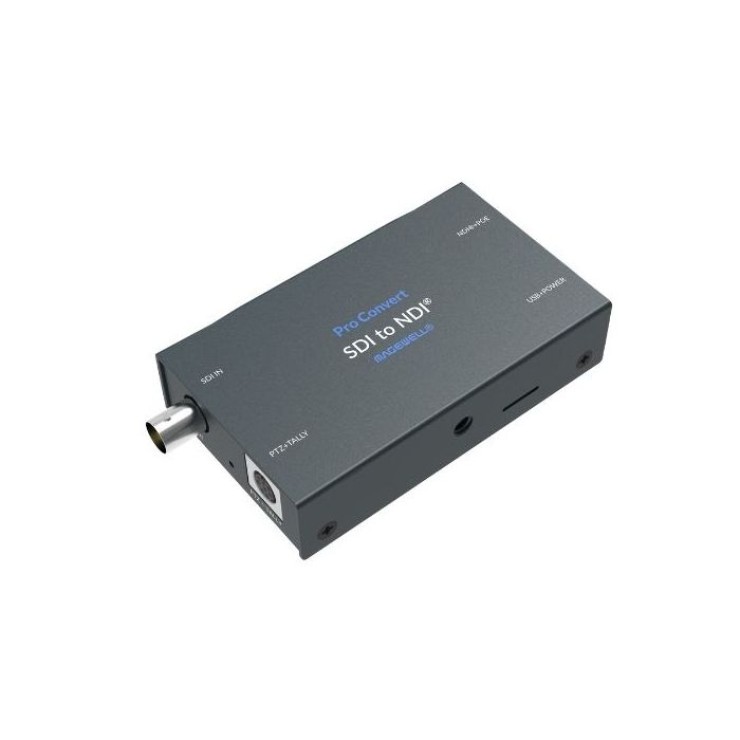

MAGEWELL PRO CONVERT SDI TX 1-CHANNEL NDI ENCODER

• Integrated cable equalizer allows SDI cable lengths up to 590'
• Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
• RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
• 8-/10-/12-bit color depth
• Support for extraction of SMPTE 352 payload identifier
• Supports 16-input (mono) and 16-output audio channels
• Allows extraction of audio formation information and channel status data
• YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
• YCbCr 4:4:4 10-bit: captured as 4:2:2
• RGB 4:4:4: R/B sub-sampled

• 4:2:2 8-bit output
• Up to 2048 x 1080 at 60 fps
• Support for NDI 3. x

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

• OBS
• XSplit
• vMix
• VidBlasterX
• Wirecast
• stream star SW
• mimoLive
• Any other NewTek NDI-enabled encoding or streaming software

• Video brightness, contrast, saturation, and hue adjustment
• Video de-interlacing: top field only; bottom field only
• Auto or manual selection of output aspect ratio
• Auto or manual selection of input color format and quantization range
• Auto or manual selection of output color format, quantization range, and saturation range
• Support for RGB, YUV BT.601, YUV BT.709, and YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, and YUV BT.2020 output color formats
• Support for limited or full quantization range
• Support for limited, full, and extended gamut saturation range
• Video frame rate conversion
• Video mirror flip

• Set the device name and source name shown in the system using Web UI
• Set board-index, from 0 to F, through an on-board rotary switch

Items Included:

• Magewell Pro Convert SDI TX 1-Channel NDI Encoder
• 5V, 2.1A Power Adapter
• USB Type A to Type B Cable
• Mini-DIN8 to DIN8 + DB9 Cable
• Tally Light
• L Bracket
• Limited 2-Year Manufacturer Warranty

Product Highlights:

• Convert SDI Signal to NDI Stream
• Embedded Audio Supported
• Up to 2048 x 1200 at 60p Input/Output
• Power Adapter + PoE
• PTZ+Tally Shared Mini-DIN Port
• 1/4"-20 Mounting Thread
• Web UI
• SDI Cable Lengths up to 590' Supported

Of course! Here's the information with proper spacing:

 **More Information**

 **SPECS**

**Inputs/Outputs**

**Video Inputs:**

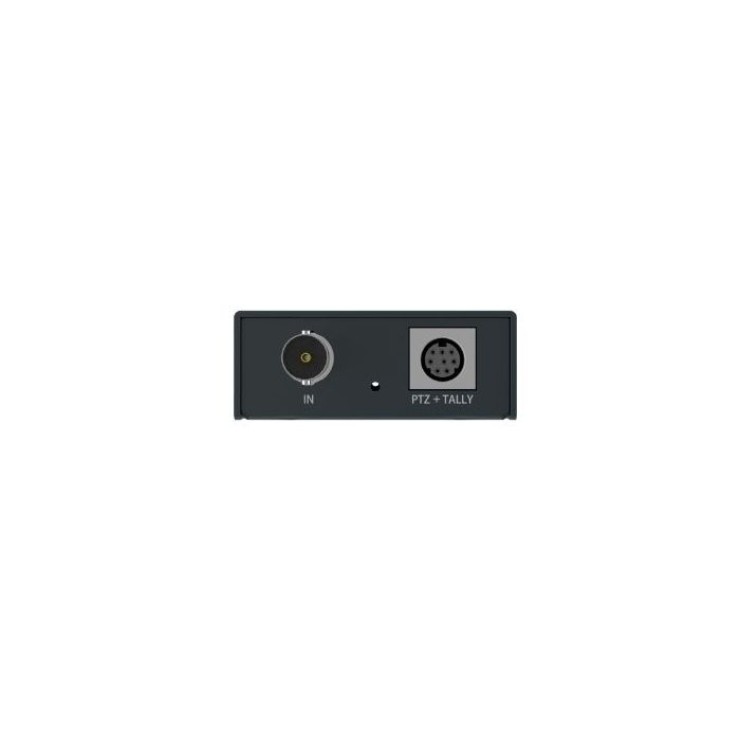

- 1 x BNC (3G-SDI)

**Video Outputs:**

- 1 x RJ45 (NDI)

**Other I/O:**

- 1 x Mini-DIN 8-Pin PTZ, Tally (Shared)

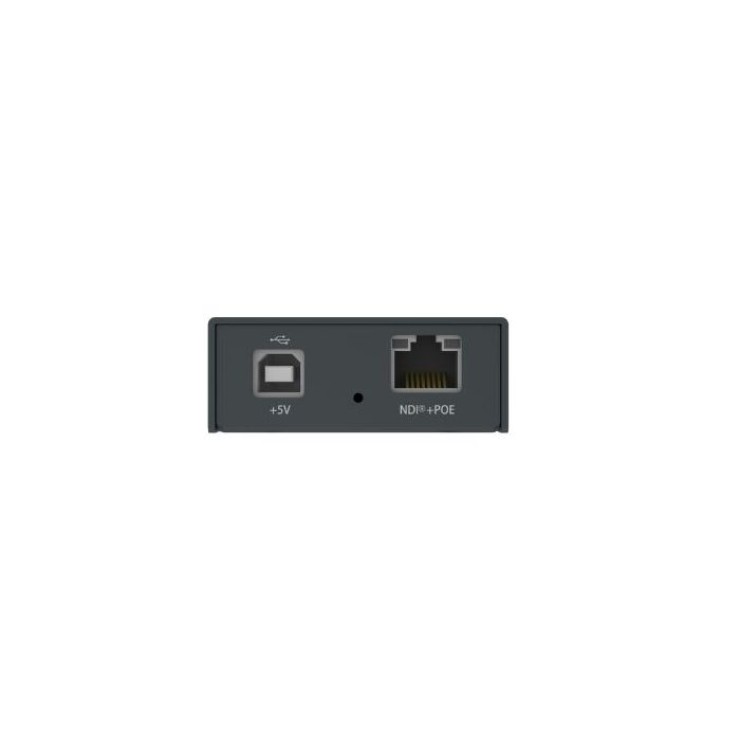

- 1 x USB-B ECM, RNDIS Input (Shared Power USB-B)

**Format Support**

**Input Video Format:**

- SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)

- DCI 2K at 60 fps

**Output Video Format:**

- RJ45 (8-Bit 4:2:2)

- DCI 2K at 60 fps

**Embedded Audio:**

- SDI Input: 16-Channel

- NDI Output: 16-Channel

**Standards**

**Video Standard Compliance:**

- SMPTE 259M/292M/425M

**EDID Support:**

- Manual Control

**HDR Compatibility:**

- Not Specified by Manufacturer

**Hardware**

**Wi-Fi:**

- None

**OS Compatibility:**

- Windows

- macOS

*(As of January, 2013: Check with manufacturer for the most up-to-date compatibility)*

**Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2.1 A) Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 7 W

**Environmental**

**Operating Temperature:**

- 32 to 113°F / 0 to 45°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90% (Non-Condensing)

**General**

**Dimensions:**

- 3.98 x 2.36 x 0.91" / 10.1 x 6 x 2.3 cm

**Packaging Info**

**Package Weight:**

- 1.4 lb

**Box Dimensions (LxWxH):**

- 8.6 x 7.7 x 1.6"
