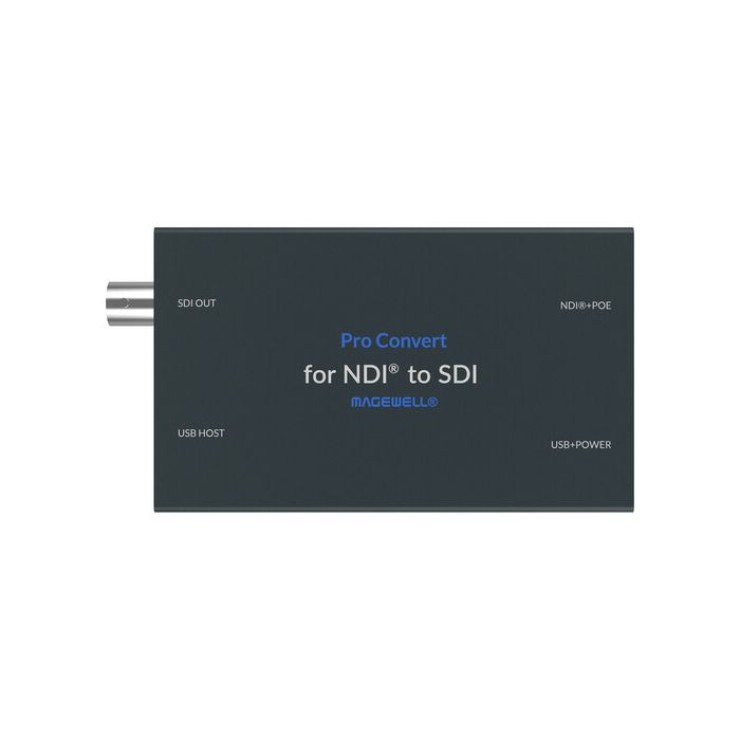

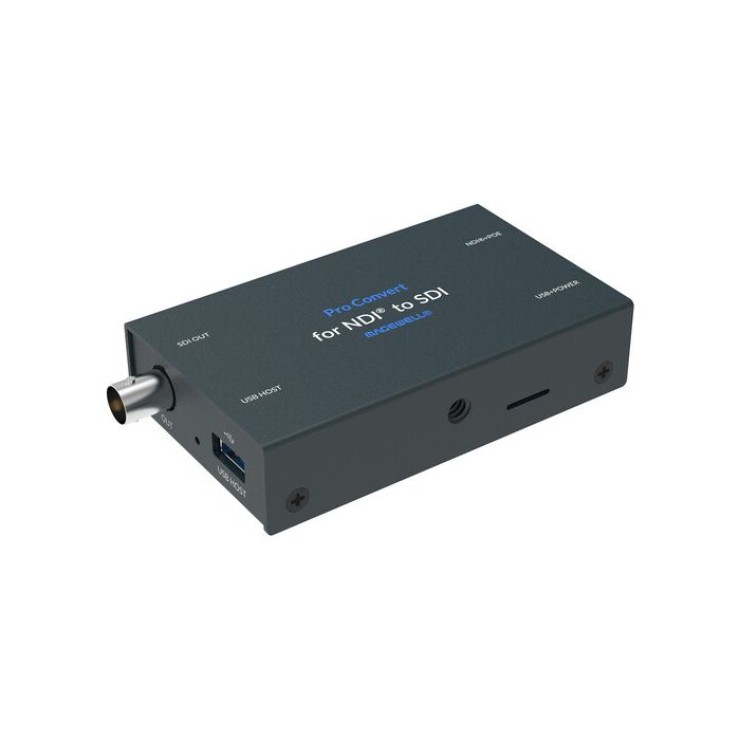

MAGEWELL PRO CONVERT FOR NDI TO SDI

Use the Pro Convert for NDI to SDI Decoder from Magewell to convert an NDI stream with embedded audio to an SDI output signal. This converter supports resolutions up to 2K60 via NDI input and decodes at resolutions up to 1080p60 for 3G-SDI output. Designed to link baseband equipment to IP-based media networks, this component supports full-bandwidth NDI and high-efficiency NDI HX modes. Supported streaming protocols include SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP.

The Pro Convert Web UI is compatible with a wide variety of web browsers and enables web configuration for settings such as the device name, source name, NDI and EDID identifiers, and other settings. The Pro Convert NDI to SDI features a 1/4"-20 mounting thread and can be powered via the included USB power adapter or over PoE using the RJ45 port.

Decoding Features

• Decodes NDI streams up to 2K60 including NDI, NDI HX, and NDI 4.5
• Up to 1080p60 3G-SDI output signals
• Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP
• Supports YUV BT.601 and YUV BT.709 color
• 16-bit, 8-channel audio streams
• Supports AAC/MP3 audio decoders

Web GUI

• Provides comprehensive, real-time device and signal information
• Enables input signal processing and decoding configuration
• OSD setting, de-interlacing, resolution, frame rate, and AR conversion
• Audio gain, sample rate, and audio-channel mapping
• Network connection configuration and firmware updates
• USB RNDIS/ECM control
• Provides HTTP APIs

Supported Web Browsers

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Onboard Controls

• Menu and Select buttons
• 16-position rotary DIP switch: set board index from 0 to F

Network Interfaces

• 10/100/1000 Mb/s Ethernet
• IEEE  802.3af PoE

Product Highlights:

• Connects baseband presentation or distribution equipment into IP-based media networks
• Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
• Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP

Items Included:

• Magewell Pro Convert for NDI to SDI
• USB Type-A to USB Type-B Cable
• 5V, 2.1A Power Adapter
• L-Bracket
• Limited 2-Year Warranty

Here's the information with proper spacing:

**More Information**

**SPECS**

**General**

**Video Inputs:**

- 1 x RJ45 (NDI) Female

**Audio Inputs:**

- None

**Video Outputs:**

- 1 x BNC (3G-SDI)

**Audio Outputs:**

- None

**Other I/O:**

- 1 x USB-B Control Input (Shared Power)

- 1 x USB-A Control Input

**Expansion Slots:**

- None

**Input Video Format:**

- RJ45

- DCI 2K at 60 fps

**Output Video Format:**

- SDI

- 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

- 1080i 50/59.94/60 fps

- 720p 23.98/24/25/29.97/30/50/59.94/60 fps

- 576i / 625 lines 50 fps

- 480i / 525 lines 50 fps

**Embedded Audio:**

- LAN (RJ45)/SDI: 8-Channel

**IP Streaming**

**Video IP Decoding:**

- RTMP, RTP, RTSP, UDP, H.264, H.265: 720 x 480 to 1920 x 1080 at 60p

**Audio IP Decoding:**

- AAC

**Hardware**

**Tally Light:**

- Yes

**Wi-Fi:**

- None

**Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2.1 A) Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 1.05 A, 5.5 W

**Environmental**

**Operating Temperature:**

- 32 to 104°F / 0 to 40°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90%

**General**

**Dimensions:**

- 4 x 2.4 x 0.9" / 100.9 x 60.2 x 23.3 mm

 **Packaging Info**

**Package Weight:**

- 1.3 lb

**Box Dimensions (LxWxH):**

- 8.3 x 4.2 x 2.6".

•
