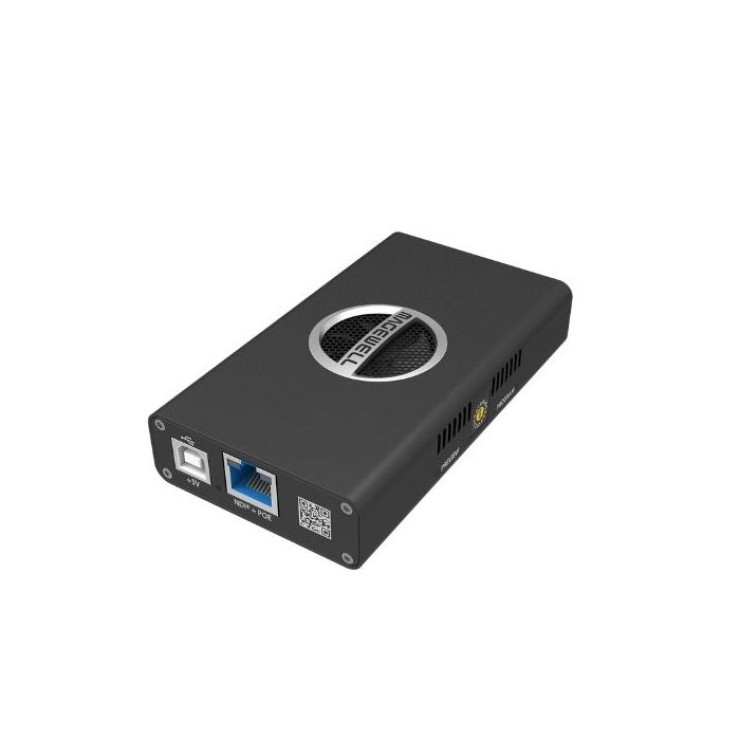

MAGEWELL PRO CONVERT HDMI PLUS

• One HDMI input, one HDMI loop-through output with embedded audio
• Convert one HDMI signal with 8 channels of embedded audio to an NDI stream
• Supports up to 4K60 input
• Supports up to 2048 x 2160 8-bit 4:2:2 at 120 fps NDI encoding output

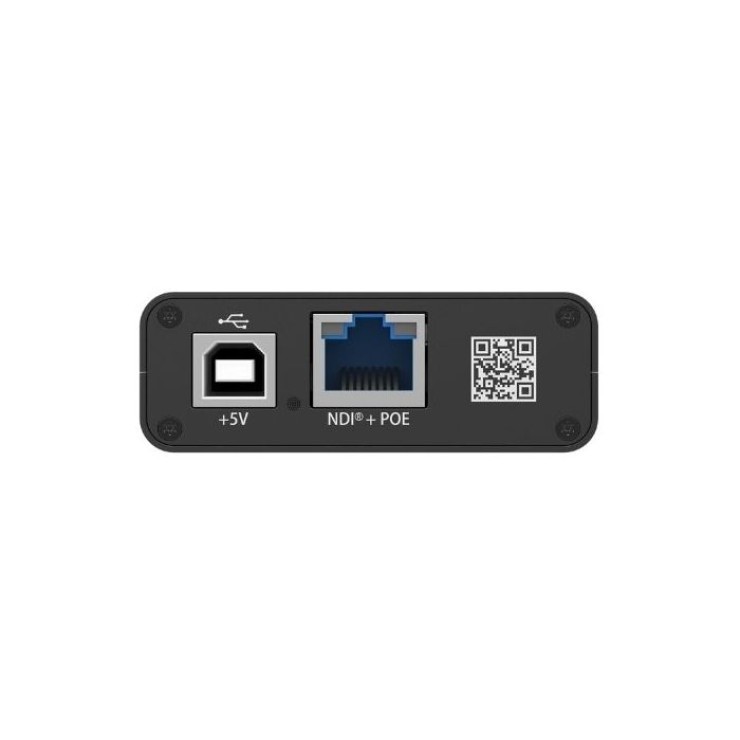

• USB 2.0 Type-B 5V power and PoE via RJ45 port
• Mini DIN-8 PTZ/Tally port
• Support for NDI 3. x
• Support for 8-channel IEC60958 audio streams
• Support for extraction of audio formation information and channel status data
• Support for extraction of video timing information
• Support for extraction of 3D format information
• Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
• 297 MHz HDMI receiver
• Adaptive HDMI equalizer
• Support for customized EDID
• Support for extraction of AVI/audio InfoFrames

• Video brightness, contrast, saturation, hue adjustment
• Video deinterlacing
  • Top field only
  • Bottom field only
• Video aspect ratio conversion
  • Auto or manual selection of output aspect ratio
• Video color format conversion
  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of output color format, quantization range, and saturation range
  • Support for RGB, YUV BT.601, YUV BT.709, and YUV BT.2020 input color formats
  • Support for YUV BT.601, YUV BT.709, and YUV BT.2020 output color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full, and 'Extended gamut' saturation range
• Video frame rate conversion
• Video mirror flip

• Support for setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'
• Support for setting the source name shown in the system using Web UI. By default, the source name is 'board-index + serial number'

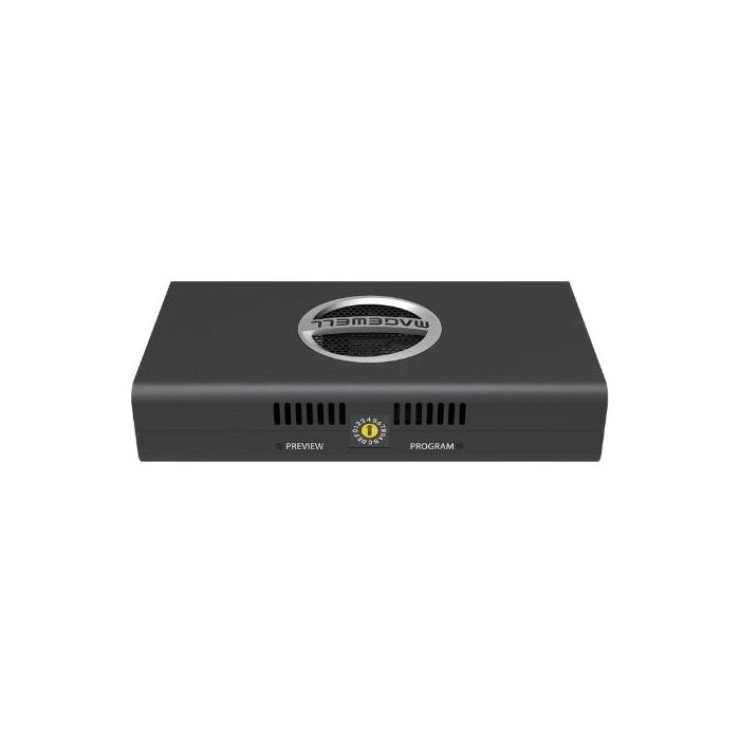

• Support for setting board-index, from 0 to F, through an on-board rotary switch

• The state of power supply: on/off
• Tally: preview/program
• The state of the input signal: locked/unlocked
• The state of loop through signal: loop through connected and signal detected/undetected

• OBS
• XSplit
• vMix
• VidBlasterX
• Wirecast
• stream star SW
• mimoLive
• NewTek NDI-enabled encoding or streaming software

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Items Included:

• Magewell Pro Convert HDMI Plus
• USB 2.0 Type-A to Type-B Cable
• 5 VDC Power Adapter
• Mini DIN-8 to RS-232/DIN-8 Cable
• L-Bracket
• Limited 2-Year Manufacturer Warranty

Product Highlights:

• Convert 4K HDMI Video to NDI Stream

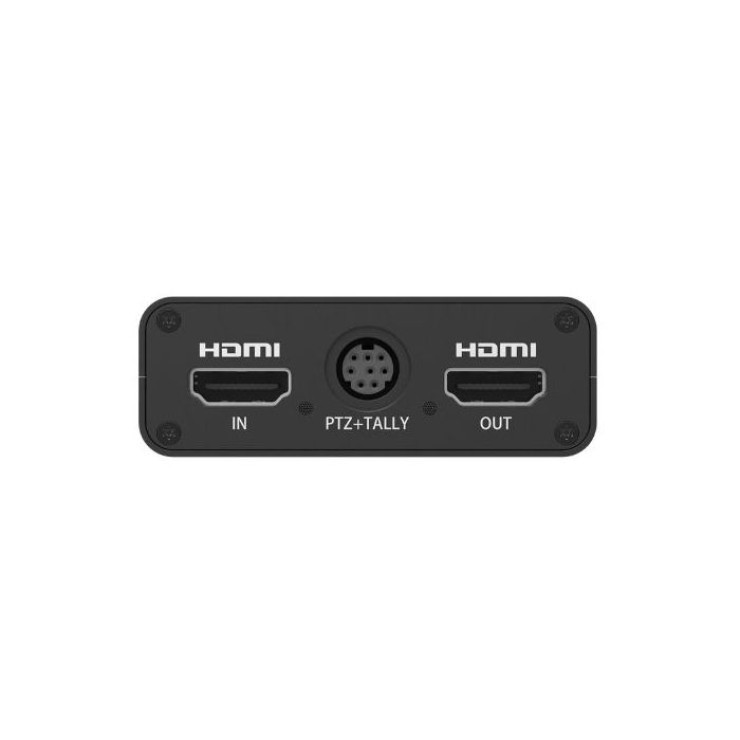

• 1 x HDMI Input, 1 x HDMI Loop-Through
• 1 x RJ45 + PoE NDI Output
• HDMI 1.4, 2.0, DVI-D 1.0 Supported
• Input up to DCI 4K60 4:2:0 Video
• NDI Encode up to 2K120 4:2:0
• 1 x Mini DIN-8 for PTZ/Tally

Certainly, here's the information with proper spacing:

 **More Information**

**SPECS**

**General**

**Video Inputs:**

- 1 x HDMI (HDMI 2.0) Female

**Video Outputs:**

- 1 x HDMI (HDMI 2.0) Female (Loop Output)

**Other I/O:**

- 1 x RJ45 LAN, NDI, PoE Input/Output

- 1 x Mini-DIN 8-Pin PTZ, Tally

**Expansion Slots:**

- None

**Input Video Format:**

- HDMI (8-Bit 4:2:0)

- UHD 4K at 60/120 fps

**Output Video Format:**

- HDMI (8-Bit 4:2:2)

- DCI 4K at 60 fps

**Embedded Audio:**

- HDMI/LAN(RJ45): 8-Channel

**Standards**

**HDCP Support:**

- None

**EDID Support:**

- Manual Control

**HDR Compatibility:**

- Not Specified by Manufacturer

**Hardware**

**Media Card Reader:**

- 1 x SD (Unspecified Type)

**Wi-Fi:**

- None

**OS Compatibility:**

- Windows 7 to 10

- macOS

*As of March 2019: Check with the manufacturer for the most up-to-date compatibility

**Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2.1 A) Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 5 VDC at 2 A (10 W)

**Environmental**

**Operating Temperature:**

- 32 to 113°F / 0 to 45°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90% (Non-Condensing)

### **General**

**Dimensions:**

- 4.65 x 2.64 x 0.91" / 11.8 x 6.7 x 2.3 cm

**Packaging Info**

**Package Weight:**

- 1.6 lb

**Box Dimensions (LxWxH):**

- 8.8 x 7.7 x 1.5".
