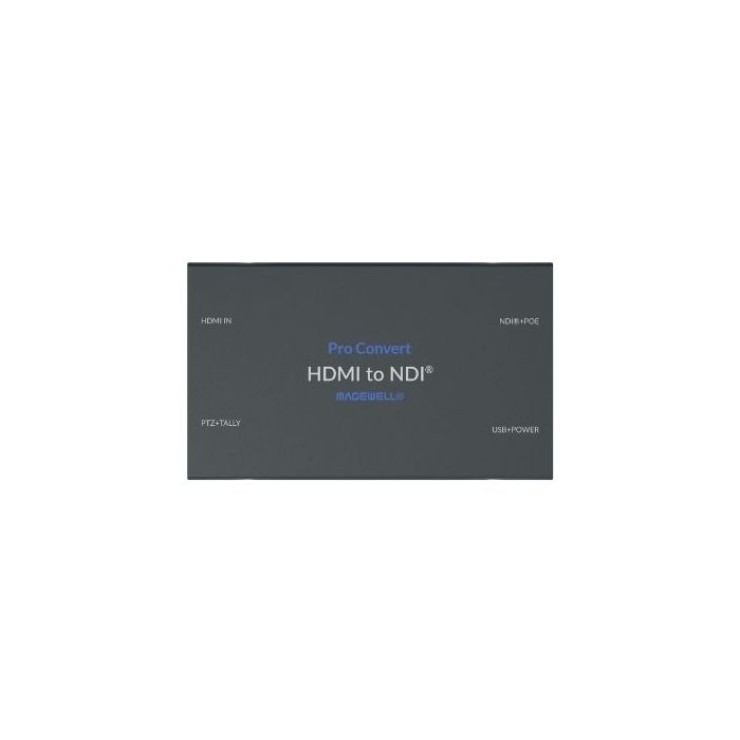

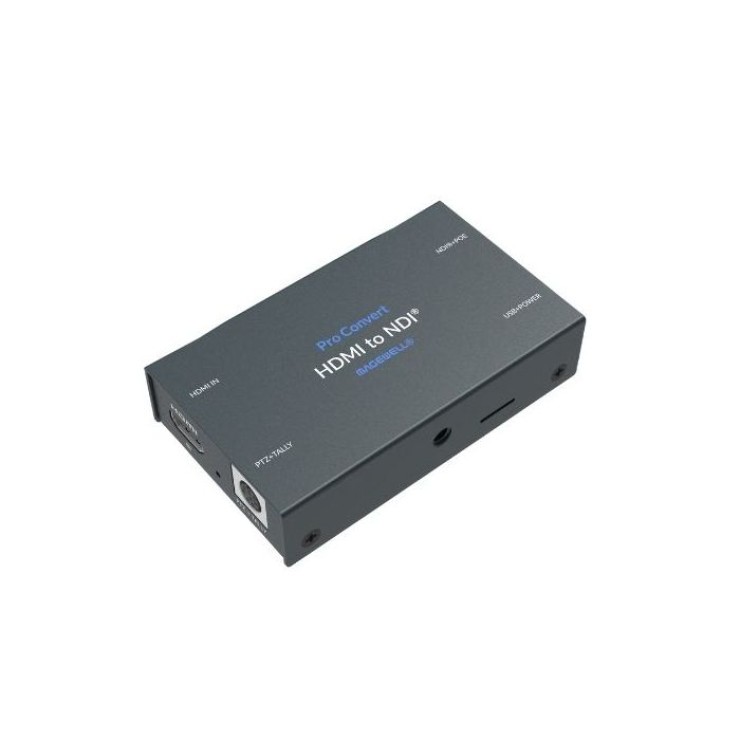

MAGEWELL PRO CONVERT HDMI TX 1-CHANNEL NDI ENCODER

• 165 MHz HDMI receiver
• Adaptive HDMI equalizer support for cables lengths up to 98'
• Customized EDID support
• Extraction of AVI/Audio InfoFrames
• Full colorimetry support
• Up to 2048 x 1200 4:4:4/4:2:2 60 fps input signals
• Support for 8-input and 2-output IEC60958 audio streams
• Extraction of audio formation information and channel status data
• Extraction of video timing information
• Extraction of 3D format information
• Side-by-side half, top-and-bottom, and frame packing 3D modes

• 4:2:2 8-bit output
• Up to 2048 x 1200 at 60 fps
• Support for NDI 3. x

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

• OBS
• XSplit
• vMix
• VidBlasterX
• Wirecast
• stream star SW
• mimoLive
• Any other NewTek NDI-enabled encoding or streaming software

• Video processing pipelines with 160 megapixels per second
• Video brightness, contrast, saturation, hue adjustment
• Video de-interlacing: top field only; bottom field only
• Auto or manual selection of output aspect ratio
• Auto or manual selection of input color format and quantization range
• Auto or manual selection of output color format, quantization range, and saturation range
• Support for RGB, YUV BT.601, YUV BT.709, and YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, and YUV BT.2020 output color formats
• Support for limited or full quantization range
• Support for limited, full, and extended gamut saturation range
• Video frame rate conversion
• Video mirror flip

• Set the device name and source name shown in the system using Web UI
• Set board-index, from 0 to F, through an on-board rotary switch

Product Highlights:

• Convert HDMI Signal to NDI Stream
• Embedded Audio Supported
• Up to 2048 x 1200 at 60p Input/Output
• Power Adapter + PoE
• PTZ+Tally Shared Mini-DIN Port
• 1/4"-20 Mounting Thread
• Web UI
• HDMI Cable Lengths up to 98' Supported

Items Included:

• Magewell Pro Convert HDMI TX 1-Channel NDI Encoder
• 5V, 2.1A Power Adapter
• USB Type A to Type B Cable
• Mini-DIN8 to DIN8 + DB9 Cable
• Tally Light
• L Bracket
• Limited 2-Year Manufacturer Warranty

**More Information**

**SPECS**

**Inputs/Outputs**

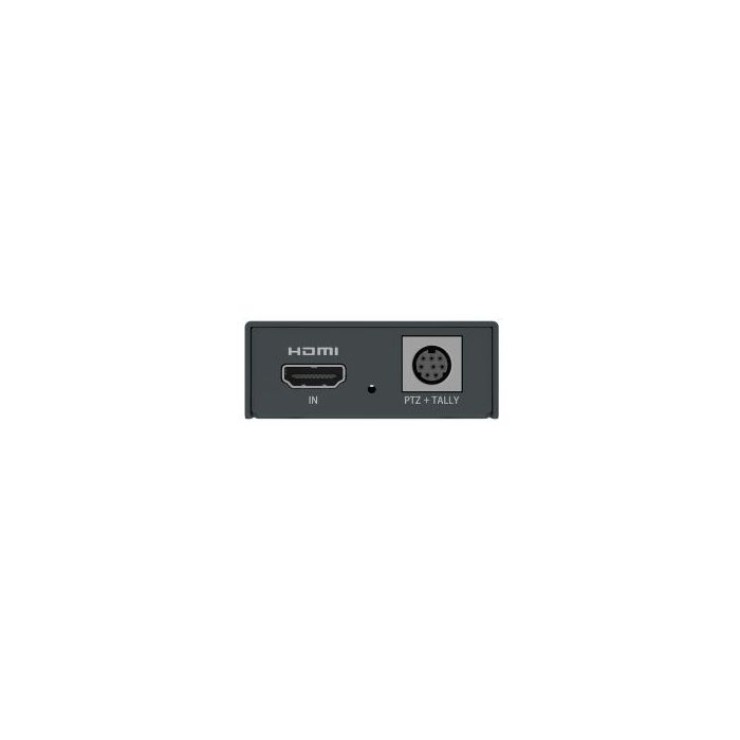

**Video Inputs:**

- 1 x HDMI (HDMI 1.4)

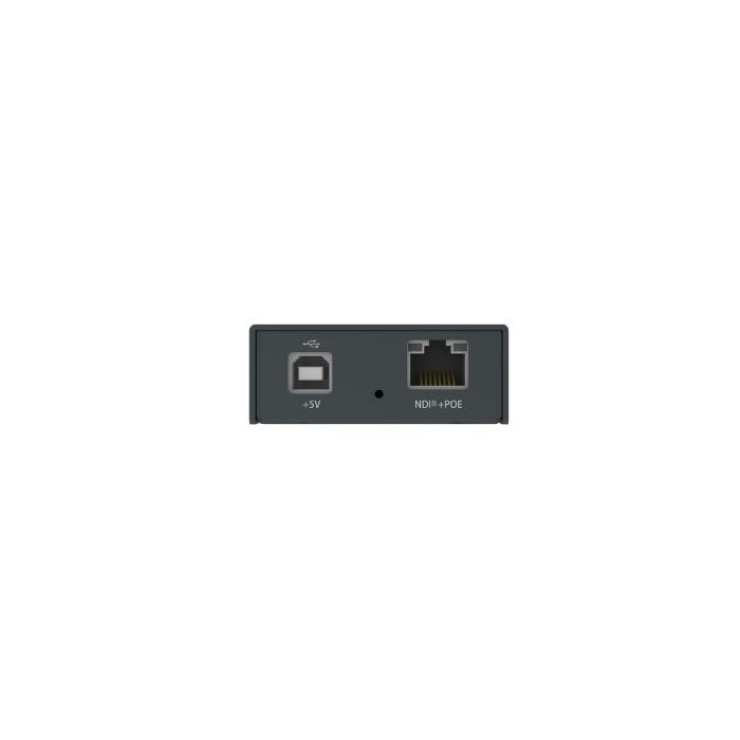

**Video Outputs:**

- 1 x RJ45 (NDI)

**Other I/O:**

- 1 x Mini-DIN 8-Pin PTZ, Tally (Shared)

- 1 x USB-B ECM, RNDIS Input (Shared Power USB-B)

**Format Support**

**Input Video Format:**

- DVI / HDMI (4:4:4/4:2:2 RGB, YUV)

- 2048 x 1200 at 60 fps

**Output Video Format:**

- RJ45 (8-Bit 4:2:2)

- 2048 x 1200 at 60 fps

**Embedded Audio:**

- HDMI Input: 8-Channel

- NDI Output: 2-Channel

**Standards**

**EDID Support:**

- Manual Control

**HDR Compatibility:**

- Not Specified by Manufacturer

**Hardware**

**Wi-Fi:**

- None

**OS Compatibility:**

- Windows

- macOS

*As of January 2013: Check with the manufacturer for the most up-to-date compatibility

**Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2.1 A) Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 6 W

**Environmental**

**Operating Temperature:**

- 32 to 113°F / 0 to 45°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90% (Non-Condensing)

**General**

**Dimensions:**

- 3.98 x 2.36 x 0.91" / 10.1 x 6 x 2.3 cm

 **Packaging Info**

**Package Weight:**

- 1.4 lb

**Box Dimensions (LxWxH):**

- 8.65 x 7.75 x 1.65".
