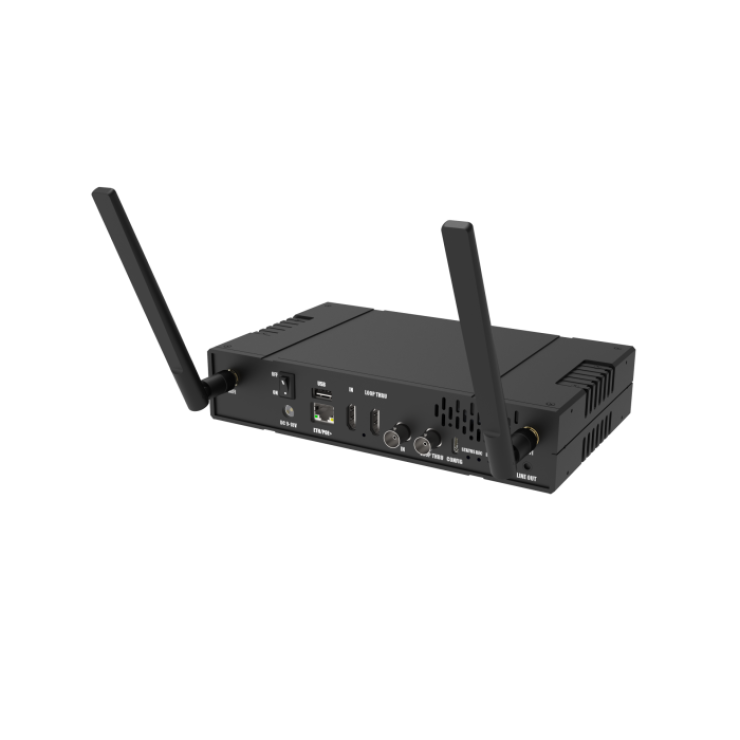

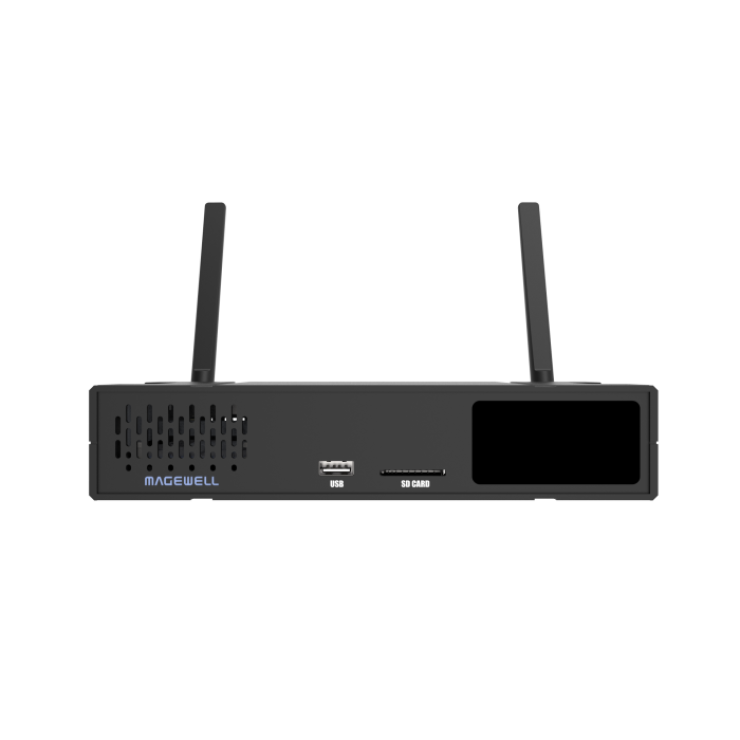

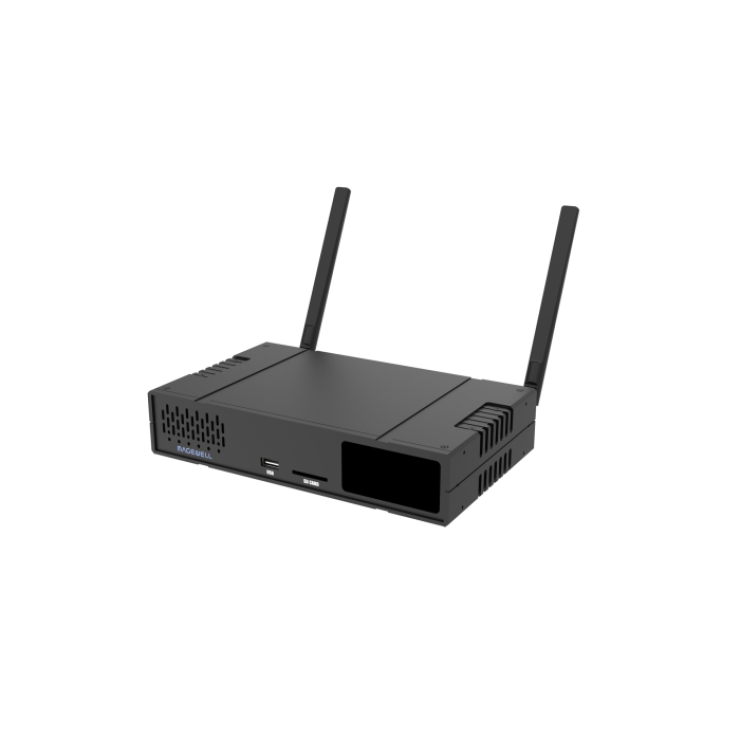

MAGEWELL ULTRA ENCODE AIO

The Ultra Encode AIO live media encoder from Magewell upgrades the capabilities of the original Ultra Encode models for advanced use cases. Expanded features include HDMI and SDI input connectivity in a single unit, 4K encoding and streaming from the HDMI input, simultaneous multi-protocol streaming, higher streaming bitrates, and both SD card and external USB recording. This encoder is ideal for high-quality live streaming of content like sports, education, and live events as well as IP-based production and AV-over-IP.

Mixes HDMI & SDI Inputs

Mixes video from the HDMI and SDI inputs in picture-in-picture (PiP) or side-by-side forms into a combined output



Multiple Streaming Outputs

Outputs up to six simultaneous sessions over multiple streaming protocols at 32Mb/s per session



NDI Protocols

Supports multiple NDI standards, including the high-efficiency, low-bandwidth NDI|HX 3



Scheduling

Supports streaming and recording scheduling



Video Encoding

Supports H.264 and efficient H.265 (HEVC) video encoding



Audio Encoding

8-channel AAC audio encoding with 16-256 Kb/s



Streaming Platforms

Native Facebook, Twitch, and YouTube support

Items Included:

• Magewell Ultra Encode AIO
• Locking Power Adapter with Plug Adapters
• HDMI Cable
• 2 x Wi-Fi Antenna
• 7 x M2.5 Screw
• Retainer Plate
• 1 RU Short Rack Ear
• 2 x 1 RU Long Rack Ear
• Limited 2-Year Manufacturer Warranty

Product Highlights:

• Up to 4096 x 2160p60 Input & Loop Output
• H.264/265 Encoding with 8-Ch AAC Audio
• Mix HDMI & SDI in PIP or Side by Side
• Up to 6 x Simultaneous Streams, 32 Mb/s
• Supports High-Efficiency NDI|HX3
• 3.5mm Audio Line In & Line Out
• Wide Streaming Protocol Support
• 1 RU Rack-Mountable Form
• SD Card & USB External Storage
• Native Facebook, YouTube, Twitch Support

**More Information**

**SPECS**

**IP Encoding/Decoding**

**IP Video:**

- H.264/H.265: 2560 x 1440 to 4096 x 2160 at 30p Encoding

- H.264/H.265: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding

- H.264/H.265: 720 x 576 at 25p Encoding

- H.264/H.265: 720 x 480 at 30p Encoding

**IP Audio:**

- AAC: 16 to 256 Kb/s Encoding

**Transport Protocols:**

- HLS, NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT

**Simultaneous Streams:**

- 6 Streams

**Compatible Services:**

- Facebook Live, Twitch, YouTube Live

**Wireless**

**Wi-Fi:**

- Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

**Bluetooth:**

- Yes

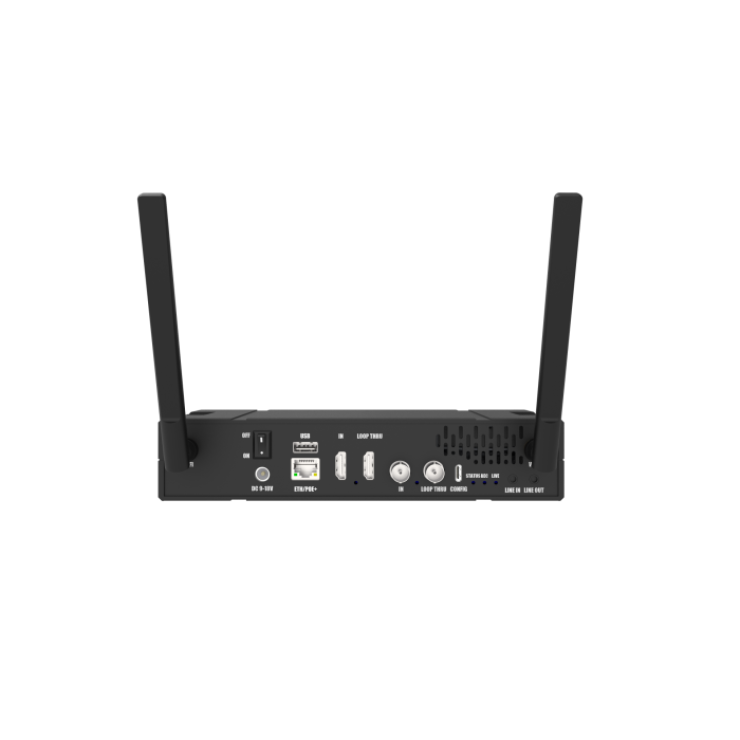

**Interfaces**

**Video I/O:**

- 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input

- 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output

- 1 x HDMI Input

- 1 x HDMI Loop Output

**Audio I/O:**

- 1 x 1/8" / 3.5 mm TRS Input

- 1 x 1/8" / 3.5 mm TRS Output

**Other I/O:**

- 2 x USB-A

- 1 x USB-C

**HDCP Support:**

- Yes

**Embedded Audio:**

- HDMI/SDI

**Internal Recording**

**Recording Media:**

- 1 x SD (Unspecified Type)

**Recording Modes:**

- 4096 x 2160p at 30/60 fps

- 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps

- 2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps

- 1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps

- 1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps

- 1280 x 720p at 25/29.97/30/50/59.94/60 fps

- 720 x 576p at 25 fps

- 720 x 576i at 50 fps

- 720 x 480p at 29.97 fps

- 720 x 480i at 59.94 fps

**Power**

**Power Connector:**

- 1 x Barrel (9 to 18 VDC) Input

**Environmental**

**Operating Temperature:**

- 32 to 72°F / 0 to 40°C

**Operating Humidity:**

- 5 to 90%

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**General**

**Display:**

- LCD

**Rackmount Size:**

- 1 RU (with Included Hardware)

**Dimensions:**

- 8.5 x 5 x 1.75" / 214.9 x 128.2 x 44.55 mm

**Packaging Info**

**Package Weight:**

- 3.515 lb

**Box Dimensions (LxWxH):**

- 11.1 x 6.8 x 4.1".

•
