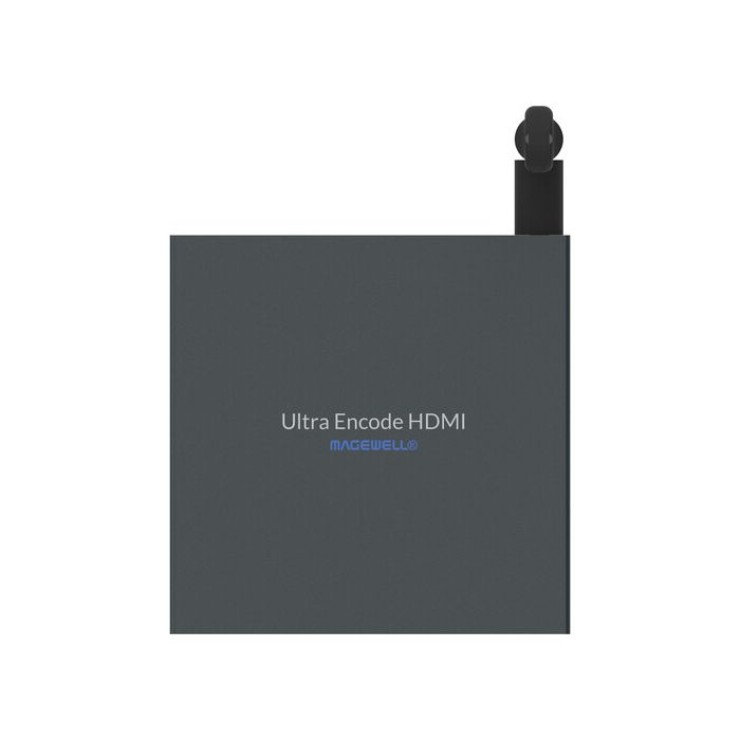

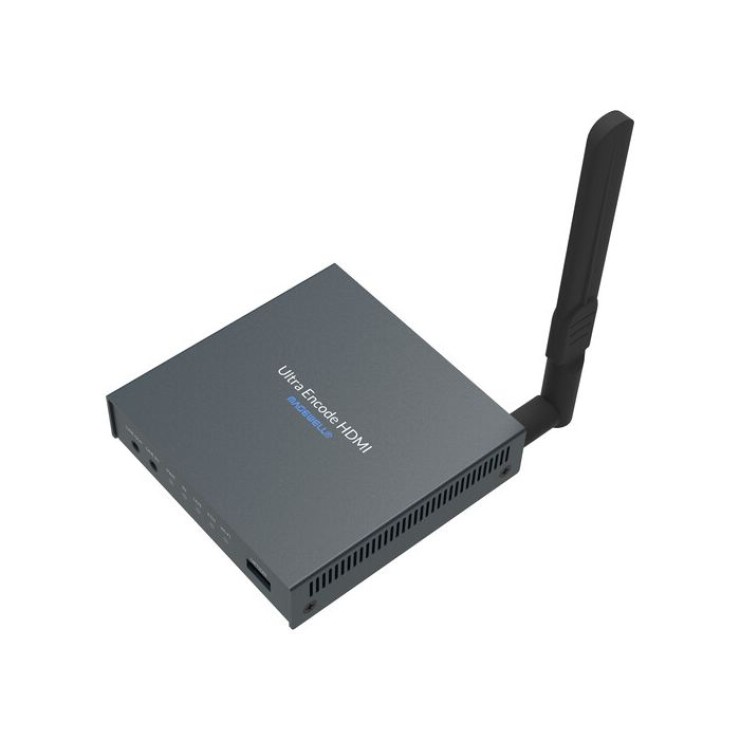

MAGEWELL ULTRA ENCODE HDMI

• Dual-stream encoding with mainstream and substream
• Max bit rate: mainstream: 16 Mb/s, sub-stream: 2 Mb/s
• H.264/H.265 (HEVC) video encoding
• 2-channel AAC audio encoding at 48 kHz, 16-bit
• 3.5mm Line In audio input

• Native Facebook, Twitch, and YouTube support
• Multiple streaming protocols including RTSP, RTMP/S, and NDI|HX2
• Simultaneous streaming to various platforms

• The dashboard provides real-time performance monitoring
• Live streaming configuration
• General settings
• Encoding wizards for configuring profiles
• Network management and configuration
• Firmware updates
• User admin management

• 10/100/1000Mb/s Ethernet
• Wi-Fi 802.11 a/b/g/n/ac
• USB 3G/4G mobile broadband modem (not included)

• Apple Safari 11.1 and above
• Google Chrome version 49 and above
• Microsoft Edge
• Microsoft Internet Explorer 11
• Mozilla Firefox version 61 and above
• Opera 55.0.2994.44 and above

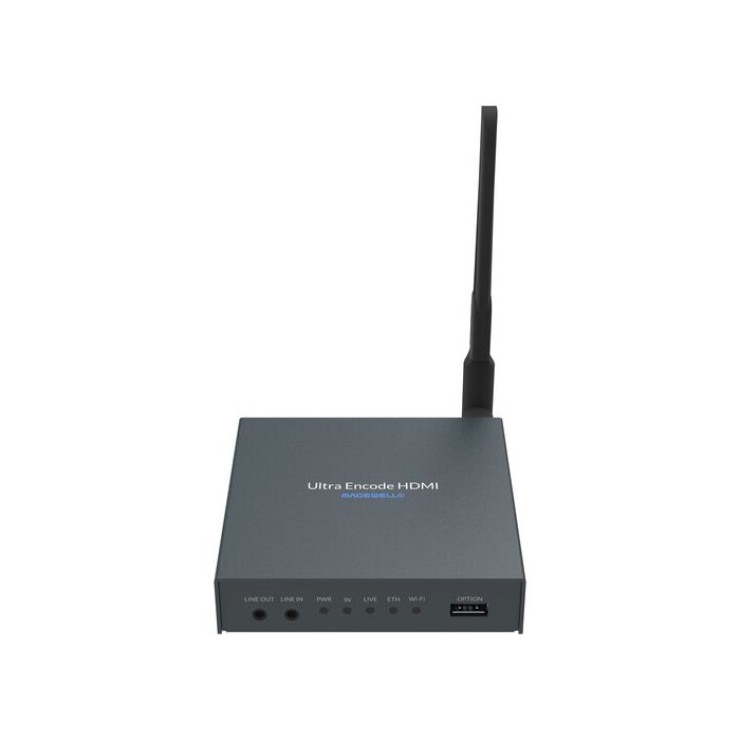

• LED status indicators for:
  • power, input signal, streaming, Ethernet, and Wi-Fi

  •


    Items Included:

  • Magewell Ultra Encode HDMI
  • USB AC Power Adapter with US/EU/UK/AU/JP Plugs
  • USB Type-B 2.0 Cable
  • HDMI Cable
  • Wi-Fi Antenna
  • T-Bracket
  • Limited 2-Year Manufacturer Warranty (Encoder)
  • Limited 1-Year Manufacturer Warranty (Accessory)

  • Product Highlights:

    • Up to DCI 4K60 Input/Loop Out
    • Dual Stream H.264/265 Encoding with AAC
    • 16 Mb/s Main & 2 Mb/s Sub Stream
    • 16-Channel HDMI Embedded Audio
    • 3.5mm Audio Line In & Line Out
    • Native Facebook, YouTube, Twitch Support
    • Wide Streaming Protocol Support
    • Control via Web UI or HTTP APIs

**More Information**

**SPECS**

**General**

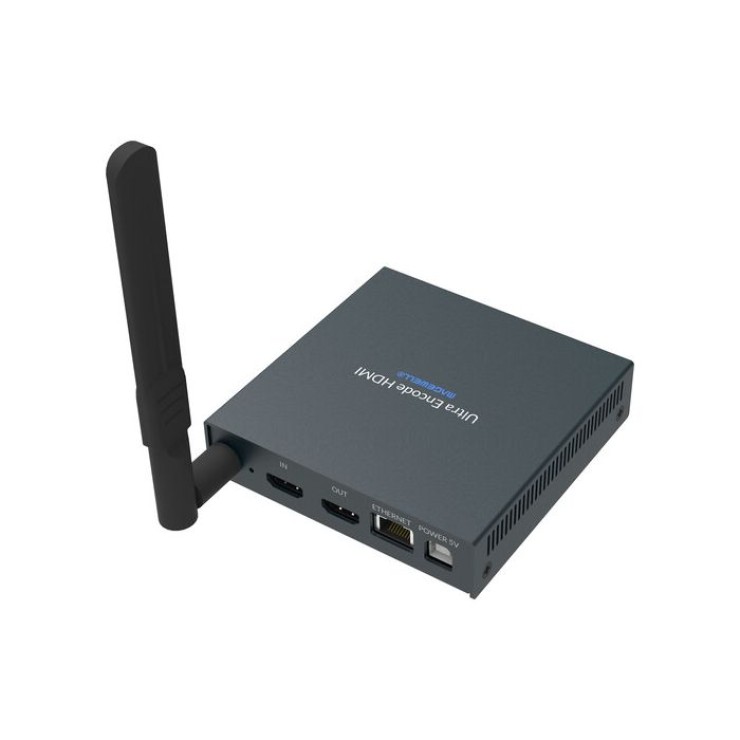

**Video Inputs:**

- 1 x HDMI (HDMI 1.4a)

**Audio Inputs:**

- 1 x 1/8" / 3.5 mm TRS

**Video Outputs:**

- 1 x HDMI (HDMI 1.4a) (Loop Output)

**Audio Outputs:**

- 1 x 1/8" / 3.5 mm TRS

**Other I/O:**

- 1 x RJ45 LAN

**Expansion Slots:**

- None

**Input Video Format**

- SDI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)

- DCI 4K at 23.98/24/25/29.97/30/59.94/60 fps

- DCI 4KPsF 23.98/24/25/29.97/30/59.94/60 fps

- DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps

- 1080p 23.98/25/29.97/30/50/59.94/60/100/119.88/120 fps

- 1080i 23.98/24/25/29.97/30/50/59.94/60 fps

- 720p 25/29.97/30/50/59.94/60/144 fps

- 576p 50/100/144 fps

- 576i / 625 lines 25/50 fps

- 480p 59.94/60/144 fps

- 480i / 525 lines 29.97/30 fps

**Output Video Format**

- HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)

- DCI 4K at 23.98/24/25/29.97/30/59.94/60 fps

- UHD 4K 23.98/24/25/29.97/30/59.94/60 fps

- DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps

- 1080p 23.98/24/25/29.97/30/50/59.94/60 fps

- 1080i 23.98/24/25/29.97/30/50/59.94/60 fps

- 720p 23.98/24/25/29.97/30/50/59.94/60/144 fps

- 576i / 625 lines 25/50 fps

- 480p 59.94/60/144 fps

- 480i / 525 lines 29.97/30 fps

**Embedded Audio**

- SDI

**Standards**

**HDR Compatibility:**

- None

**IP Streaming**

**Video IP Encoding:**

- H.264, H.265, HLS, NDI, RTMP, RTSP, SRT, TS, UDP: 480 x 270 to 1920 x 1080 at 5, 10, 15, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p

**Audio IP Encoding:**

- AAC: 16-Bit / 48 kHz (16.00 to 256.00 Kb/s)

**Wi-Fi:**

- Yes

**Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2 A) Input

**Power Consumption:**

- 9.5 W

**Environmental**

**Operating Temperature:**

- 32 to 72°F / 0 to 40°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90% (Non-Condensing)

**General**

**Dimensions:**

- 4.2 x 4.2 x 1" / 106.6 x 106.2 x 25 mm

 **Packaging Info**

**Package Weight:**

- 1.375 lb

**Box Dimensions (LxWxH):**

- 9.4 x 6.1 x 2.6".
