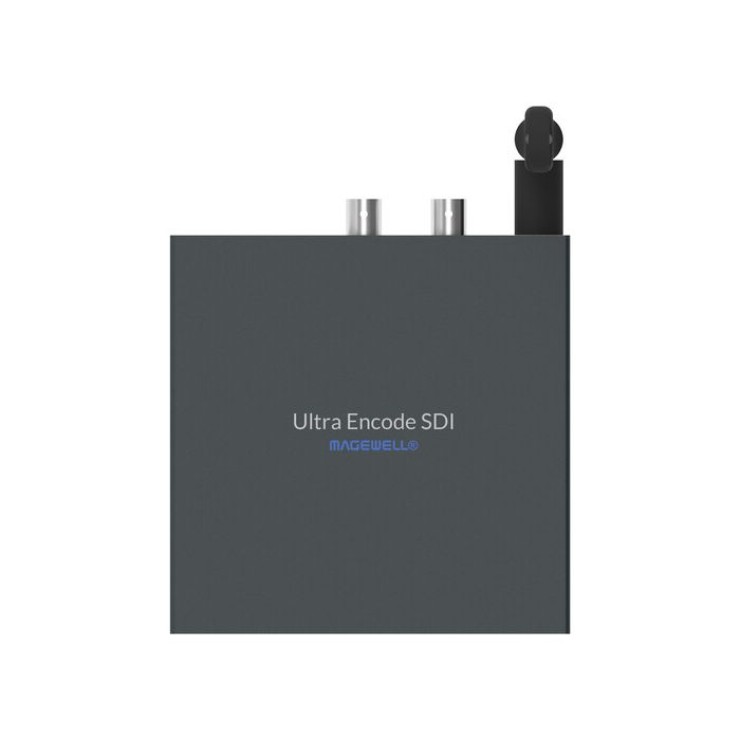

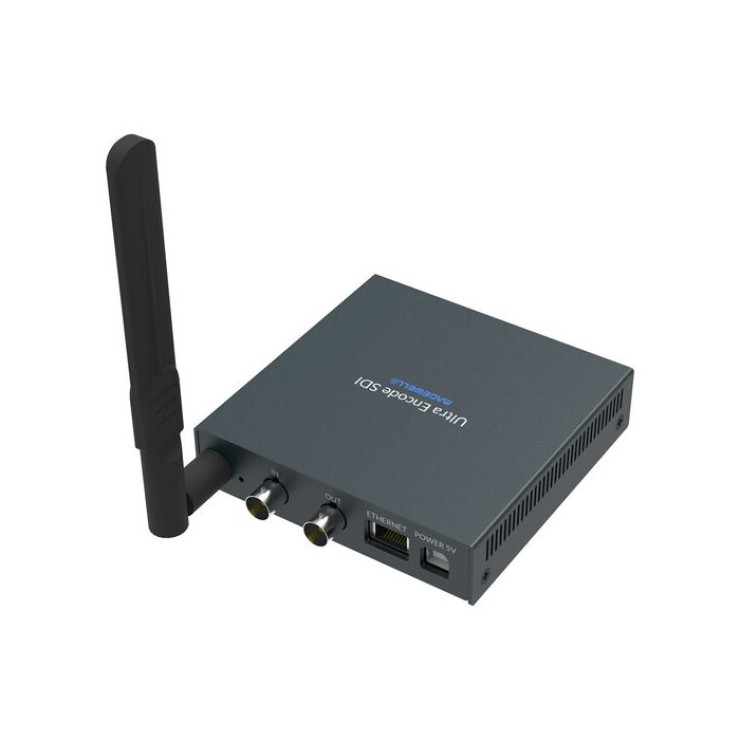

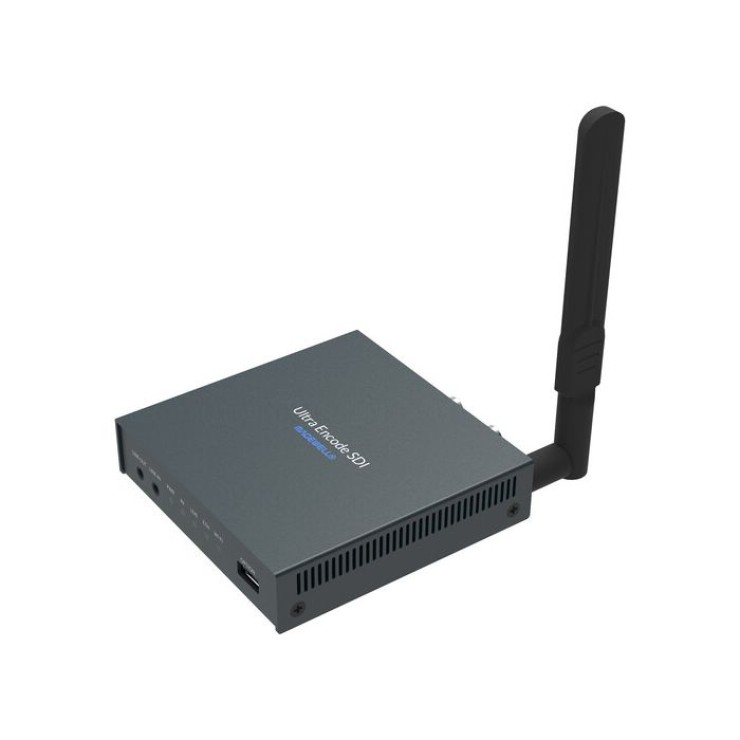

MAGEWELL ULTRA ENCODE SDI

• Dual stream encoding: mainstream and substream
• Main stream: 16 Mb/s maximum bitrate
• Substream: 2 Mb/s maximum bitrate
• Supported Resolutions: 1920 x 1080, 1600 x 1200, 1440 x 1080, 1440 x 900, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768, 960 x 540, 800 x 600, 768 x 576, 720 x 576, 720 x 540, 640 x 480, 640 x 360, 480 x 360, 480 x 270
• Supported frame rates: 5, 10, 15, 24, 25, 29.97, 30, 50, 59.94, and 60 fps
• H.264/H.265 (HEVC) video encoding
• 2-channel AAC audio encoding at 48 kHz, 16-bit
• Supported audio bitrates: 16, 32, 48, 64, 96, 128, 192, and 256 kb/s

Streaming Features

• Native Facebook, Twitch, and YouTube support
• Supported streaming protocols: RTSP, RTMP, RTMPS, SRT Caller, SRT Listener, NDI|HX2, HLS (push), TS over UDP, TS over RTP
• Up to 6 sessions of TS over RTP and TS over UDP simultaneously
• Up to 6 sessions of SRT Caller and SRT Listener simultaneously, containing one SRT Listener session at most (maximum of 8 clients simultaneously)
• Up to 6 sessions of RTMP and RTMPS simultaneously
• Stream only one session of HLS (push), RTSP, or NDI|HX2
• 24 Mb/s for all streams is recommended for a wired network connection / 16 Mb/s is recommended for a wireless network connection
• Specify streaming mainstream or substream for each session

• Supported on IE, Edge, Firefox, Chrome, Safari, and Opera web browsers
• Comprehensive system information and working status in real time
• Video thumbnail preview
• Configure volume, color, color format, and quantization of input and output signals
• Export configuration profiles
• Update firmware
• Provide HTTP APIs

• Compatible standards: SD (ST 259), HD (ST 292), 3Ga (ST 425), 3Gb (ST 425), 3Gb-DL(ST 425), 3Gb-DS(ST 425)
• Standard 1/4"-20 mounting threads provided by T-bracket
• 2 x M3 threaded holes

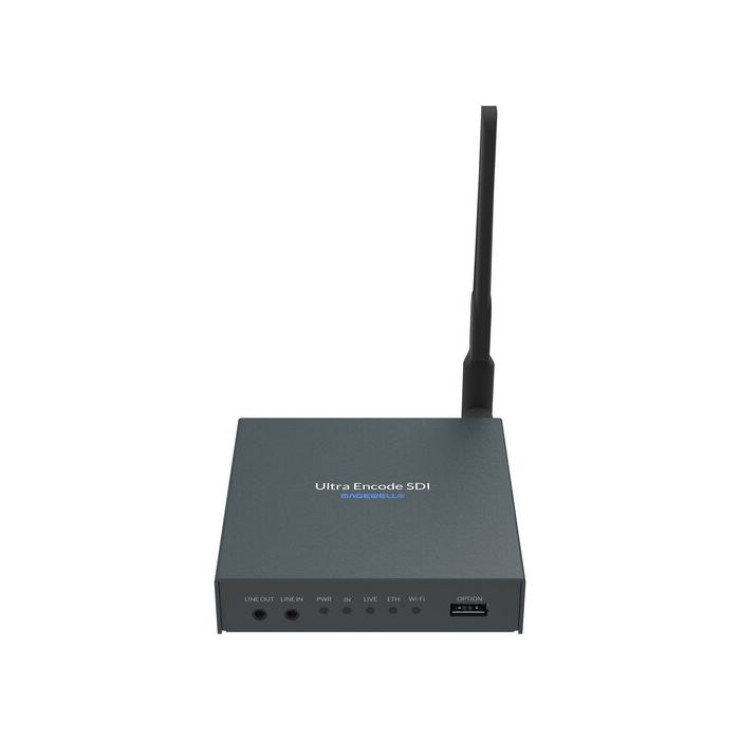

• LED indicators for power, input signal, streaming, Ethernet connection, and Wi-Fi connection status
• Wired Ethernet network: 10/100/1000 Mb/s
• Wi-Fi 802.11 a/b/g/n/ac
• Support for optional 3G/4G USB mobile broadband modems
• .

• Items Included:

  • Magewell Ultra Encode SDI
  • USB AC Power Adapter with US/EU/UK/AU/JP Plugs
  • USB Type-B 2.0 Cable
  • Wi-Fi Antenna
  • T-Bracket
  • Limited 2-Year Manufacturer Warranty

Product Highlights:

• Up to 2048x1080p60 Input & Loop Output
• Dual Stream H.264/265 Encoding with AAC
• 16 Mb/s Main and 2 Mb/s Sub Stream
• 16-Channel SDI Embedded Audio
• 3.5mm Audio Line In and Line Out
• Wide Streaming Protocol Support
• Control via Web UI or HTTP APIs
• Native Facebook, YouTube, Twitch Support

**More Information**

**SPECS**

**Inputs / Outputs**

**Video Inputs:**

- 1 x BNC (3G-SDI)

**Audio Inputs:**

- 1 x 1/8" / 3.5 mm TRS

**Video Outputs:**

- 1 x BNC (3G-SDI) (Loop Output)

**Audio Outputs:**

- 1 x 1/8" / 3.5 mm TRS

**Other I/O:**

- 1 x RJ45 LAN

**Expansion Slots:**

- None

**Format Support**

**Input Video Format:**

- SDI (8/10/12-Bit)

- DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

- 1080p 23.98/25/29.97/30/47.95/48/50/59.94/60 fps

- 1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

- 720p 25/29.97/30/50/59.94/60 fps

- 480i / 525 lines

- 576i / 625 lines

**Output Video Format:**

- SDI (8/10/12-Bit)

- DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

- 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

- 1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps

- 720p 23.98/24/25/29.97/30/50/59.94/60 fps

- 720 x 480

- 720 x 576

**Embedded Audio:**

- SDI

**Standards**

**HDR Compatibility:**

- None

**IP Streaming**

**Video IP Encoding:**

- H.264, H.265: 480 x 270 to 1920 x 1080

**Audio IP Encoding:**

- AAC: 16-Bit / 48 kHz (16.00 to 256.00 Kb/s)

**Hardware**

**Wi-Fi:**

- Yes

**Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2 A) Input

**Power Consumption:**

- 7.6 W

**Environmental**

**Operating Temperature:**

- 32 to 72°F / 0 to 40°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90%

**General**

**Dimensions:**

- 4.2 x 4.2 x 1" / 107 x 106 x 25 mm

 **Packaging Info**

**Package Weight:**

- 1.35 lb

**Box Dimensions (LxWxH):**

- 9.4 x 6.1 x 2.6".
