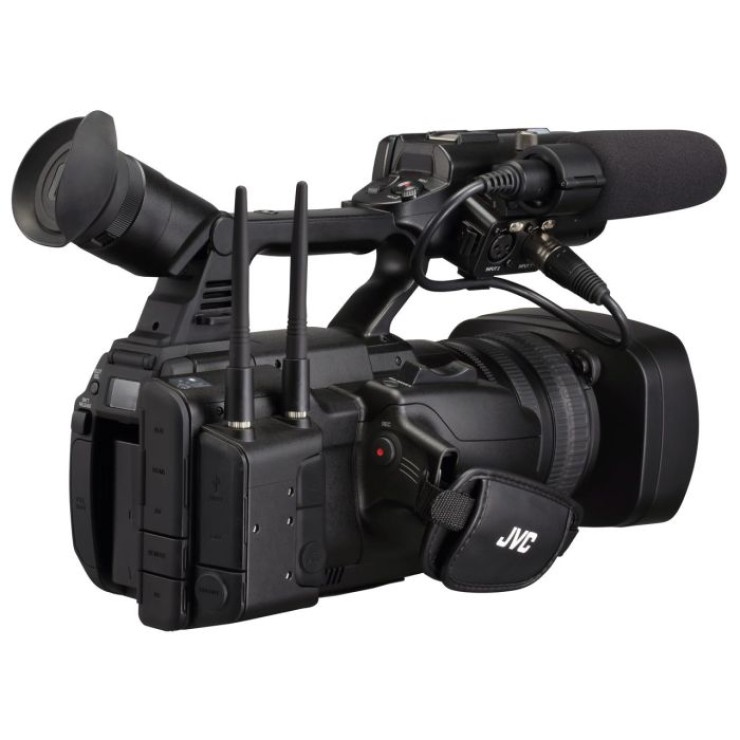

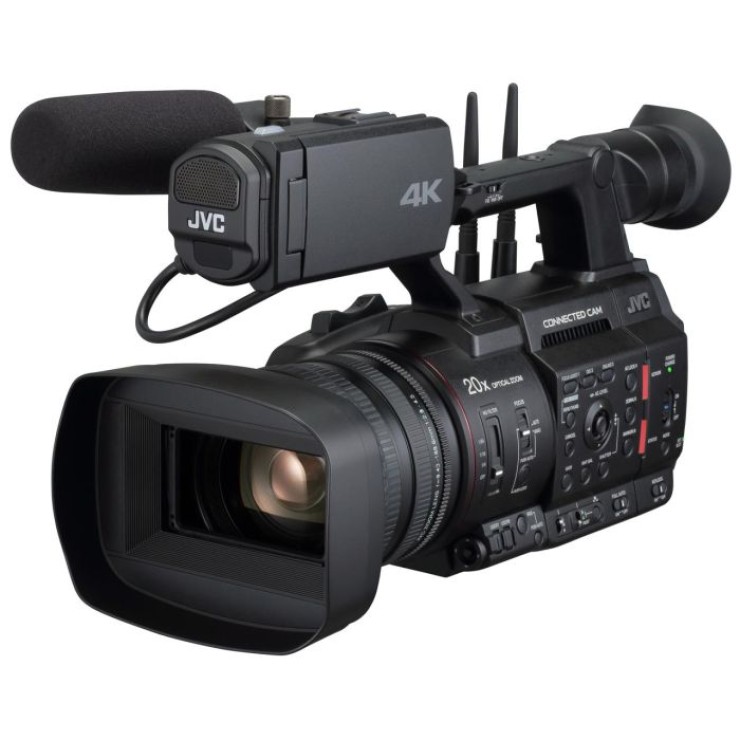

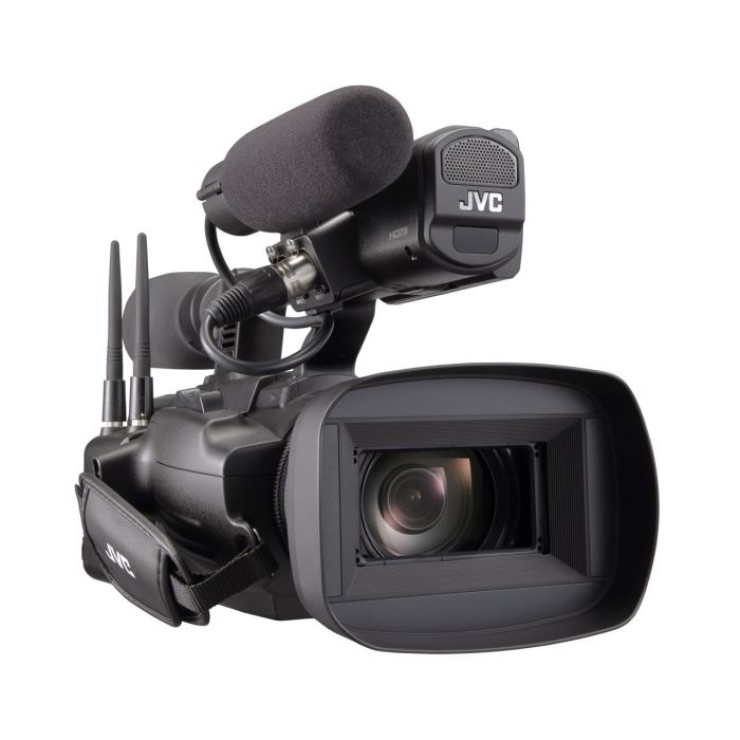

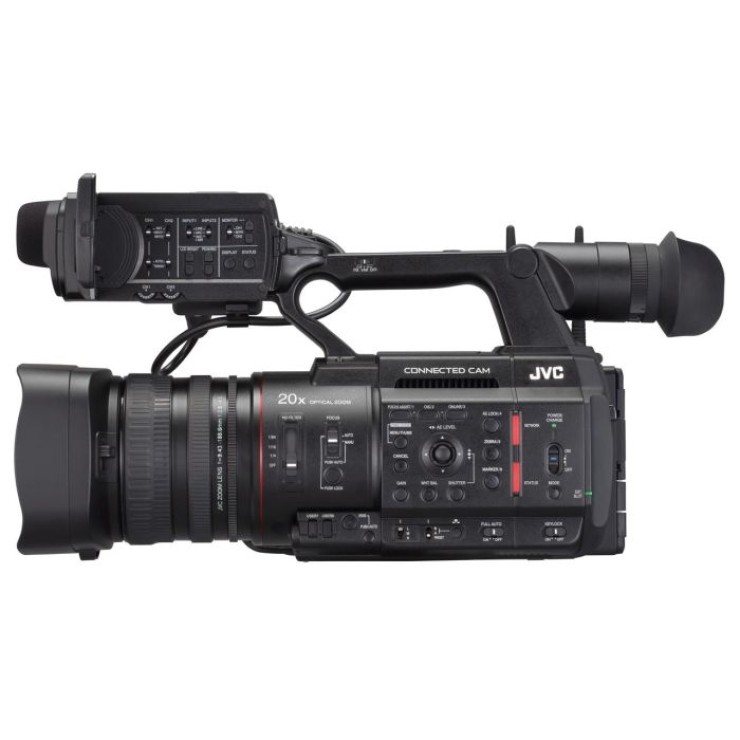

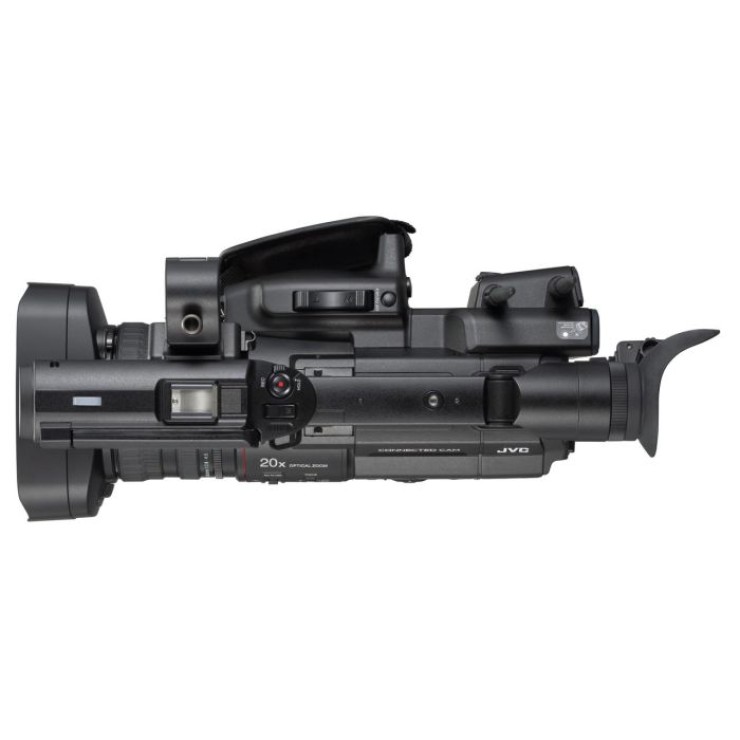

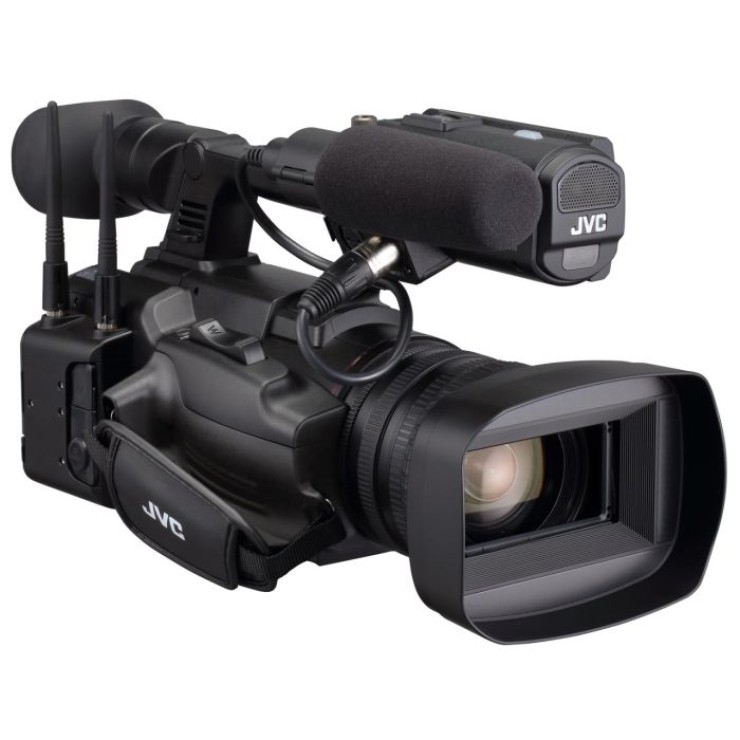

JVC GY-HC550 HANDHELD CONNECTED CAM 1" 4K BROADCAST CAMCORDER

• 10-bit ProRes 422 at 4K resolution and 50/60p frame rates recording to M.2 SSD (requires optional caddy)
• 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
• MPEG-2 recording in HD for compatibility with broadcast systems
• HDR recording, HLG, or J-Log1 (10-bit)
• 1-inch (effective) CMOS sensor with high picture quality, F11 Sensitivity
• Newly developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
• 20x optical zoom, 40x lossless dynamic zoom
• 4-inch high-resolution LCD monitor, LCOS Quad VGA viewfinder
• XLR audio connectors
• High performance 1080 60p/50p live streaming (4K Rec + HD streaming + 4K HDMI output)
• Low latency and high-quality streaming up to 20 Mb/s
• LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
• Return over IP (Return video and IFB)
• Auto FTP to upload native video clips automatically
• The camera includes broadcast overlay capability and built-in GPS

Items Included:

• JVC GY-HC550 Handheld Connected Cam 1" 4K Broadcast Camcorder
• BN-VC264 Battery
• Lens Hood
• 2 x Wireless Antennas
• AC Adapter
• Power Cable
• Limited 2-Year Parts/1-Year Labor Warranty

Product Highlights:

• Broadcast Overlay, MPEG-2 Recording
• Built-In Wireless LAN, Zixi, and GPS
• 1" CMOS Sensor, 20x Optical Zoom
• 3840 x 2160 60p/50p/30p/25p/24p
• UHD 4K, HD, SD, SD-Proxy Recording
• HDR via HLG or J-Log1 (10-Bit)
• ProRes, MOV, MP4 Recording, IP Streaming
• 3 x Manual Lens Rings: Focus, Iris, Zoom
• LCOS Quad VGA EVF, LCD Viewfinder
• 2 x SDHC/SDXC Card Slots, Optional SSD

GY-HC550E - Specification

More Information

Camera Front-End Specifications

Image Sensor (inch): 1" (effective) CMOS

Number of Sensors: 1

Mega Pixels: 9,35 mio

Sensitivity in F at 2000 Lux: F 12

Shutter speed: 1/6 to 1/10000

White Balance modes: FAW, AWA, 3200K, 5600K, Manual

Color Matrix adjustment: Yes

Wide Dynamic Range Mode (WDR): Yes

LOG Mode: Yes, J-LOG HLR

User-selected function buttons: Yes

User Customizes Menu: Yes

Optical Specifications

Lens mount: Internal

Optical Zoom X times: 20

Dynamic Zoom x times: 40

Lens F Number: 2.8 to 4.5

Lens ratio from/to: 9.43mm to 188.6mm

Lens ratio equivalent to 35mm: 28mm to 560mm

Auto Focus: Yes

Optical Image Stabilization: Yes

Filter Diameter in mm: 82mm

Built-in ND Filters: 3 Filters: 1/4, 1/16, 1/64 plus OPEN

Recording Formats

Media: SDHC/SDXC memory card x 2 plus M2 SSD Slot with Adapter* optional

Media Class: 4K/70 Mbps, HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)

Recording slots: 3

Encoder: ProRes, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)

File Format MOV: Yes

File Format MP4: Yes

File Format MXF: Yes

Video Codec MPEG2 Long GOP: Yes

Video Codec MPEG4 AVC/H264 4K/HD: Yes

Video Codec H264 (SD): Yes

Video Codec others: 4K UHD ProRes / Proxy H264

Recording Resolution Formats:

Resolution 3840 x 2160: Yes, 4K UHD 60p/50p (ProRes) 422HQ/422/422LT 10-bit

4K UHD 30p/25p/24p (H.264) 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps

Resolution 1920 x 1080: Yes

Resolution 1280 x 720: Yes

Resolution 720 x 576: Yes, 50i

Resolution 960 x 540: Yes

Resolution 480 x 270: Yes

SD Recording: Yes

Audio Channels: 2

Audio Recording modes: LPCM 2ch, 48kHz/16-bit (MOV/MXF*), µ-Law 2ch (Proxy), AAC 2ch (MP4)

Audio Filters: Yes

IP Section of the Product

IP Main Connection: USB A Host, Ethernet LAN RJ45 1000Base-T

IP Connection supports: Ethernet, WIFI - and LTE USB Adapters

IP Build-in WIFI: Yes

IP Build-in WIFI-Band area support: 2.4GHz and 5GHz with MIMO

IP Features Live-Streaming: Yes

IP Features Remote: Yes, via RM-LP100 or Web-Browser no apps needed

IP Features FTP: Yes, Different protocols

Special Features

Overlay for Broadcast News: Yes

Fix Templates: Yes

Self-Modify Templates via SDP Generator: Yes

Text support: Yes

Logo support: Yes

LIVE Logo: Yes

Overlay output selection: Yes, REC / LIVE / STREAM

IN-OUT's Connections

OUT HDSDI: Yes, 3G HDSDI

OUT HDSDI Format max.: 1080/60p,50p 10 Bit 4:2:2 EE

OUT HDMI: Yes

OUT HDMI Format max.: UHD

OUT AV: Yes, 3.5mm mini jack

OUT Audio Headphone: Yes, 1 time 3.5mm mini jack

IN Audio XLR MIC/LINE: Yes, 2 CH with +48 V Mic and Line support

Time code IN/OUT: Yes

Wired remote IN: Yes, serial LANC 2.5mm mini jack

USB HOST: Yes

Option Slot: SSD Caddy Support

EVF and LCD

Operation Panel Type: LCD

Operation Panel Resolution: WVGA (800 x 480), 800 x 450 at 16:9

WVGA (800 x 480), 800 x 450 at 16:9: Operation Panel Size diagonal in inch

Operation Panel Size diagonal in inch: 3.97

3.97: Electronic Viewfinder (EVF) Type

Electronic Viewfinder (EVF) Type: LCOS

LCOS: Electronic Viewfinder (EVF) Resolution

Electronic Viewfinder (EVF) Resolution: Quad VGA (1280 x 960), 1280 x 720 at 16:9

Quad VGA (1280 x 960), 1280 x 720 at 16:9: Electronic Viewfinder (EVF) Size diagonal in inch

Electronic Viewfinder (EVF) Size diagonal in inch: 0.4

Power and Environment Specs

Power AC: Yes, DV12V (AC Adapter)

Power DC: Yes, 7.2 Volt Battery BN-VC264

Battery types: BN-VC264

Power consumption: 17.5 Watt

Mechanical Information

Weight in kg: 3.1 kg

Measurements (WxHxD) in mm: W 195 x H 230 x D 445

Include Package

Battery: Yes, BN-VC296G

AC/DC adapter: Yes, AC Adapter

Cable 1: Yes, Power cord

Additional s: Yes, Wireless Antennas 2x, Lens Cap

Imaging

Image Sensor: 1-Chip 1" CMOS Sensor

Sensor Resolution: 9.35 MP

Sensitivity: f/11 at 2000 lux 89% Reflectance

Lens

Focal Length: 9.4 to 188.6mm

35mm Equivalent Focal Length: 28 to 560mm

Optical Zoom Ratio: 20x

Maximum Aperture: f/2.8 to 4.5

Filter Size: 82 mm

Control Rings: Focus, Zoom, Iris

Focus Control: Autofocus, Manual Focus

Camera

Shutter Speed: 1/6 to 1/10,000 sec

Built-In ND Filter: Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type: Stereo

Media/Memory Card Slot: Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended]

Recording

Recording Modes:

ProRes 422HQ 4:2:2 10-Bit:

3840 x 2160p up to 50/60 fps

ProRes 422 4:2:2 10-Bit:

3840 x 2160
