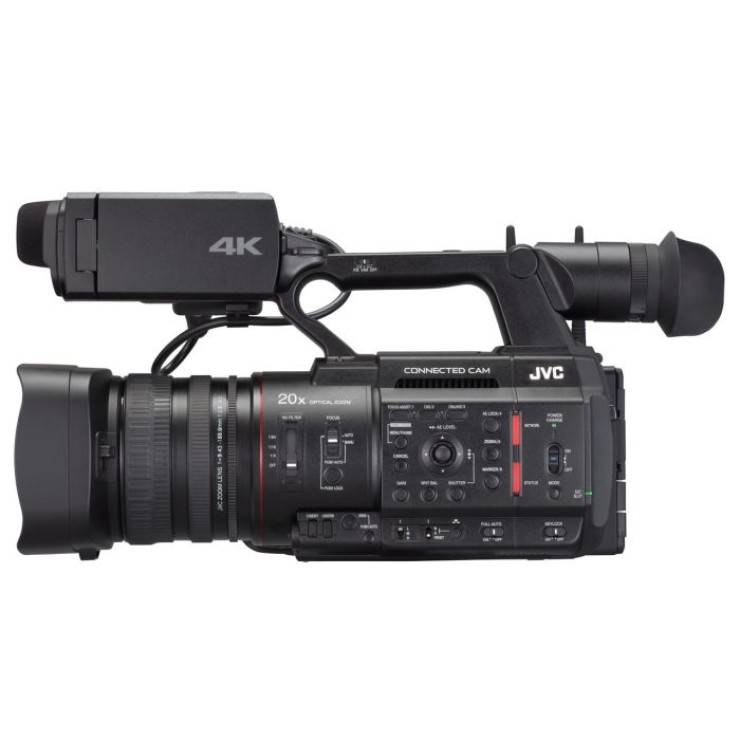

JVC GY-HC550ESB 4K LIVE STREAMING CAMCORDER WITH BROADCAST AND SPORTS SCORE OVERLAYS

The JVC GY-HC550ESB handheld 4K camcorder features class-leading streaming and IP connectivity, with 10-bit Apple ProRes 422 50/60p recording in both 4K and HD to SSD. It can also be upgraded to support NDI|HX. This version includes a Sports overlay and a Broadcast overlay, making it ideal for ENG, production, and sports, with the camera providing IP connectivity from any location to anywhere in the world.

Features:

• 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
• Newly-developed 4K lens with 20x zoom
• Sports and Broadcast overlay on video and streaming
• High performance 1080 60p/50p live streaming
• 4K Rec + HD streaming + 4K HDMI output
• Low latency and high-quality streaming up to 20Mbps
• LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
• Return over IP (Return video and IFB)
• Auto FTP to upload native video clips automatically
• Built-in wireless LAN (2.4GHz/5GHz) MIMO with external antenna

• 1" (effective) CMOS sensor with high picture quality
• HDR recording, HLG, or J-Log1 (10-bit)
• F12 Sensitivity
• 40x lossless dynamic zoom
• 4-inch high-resolution LCD monitor
• XLR audio connectors
• 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
• NEW HD Recording to SSD*
• NEW Progressive Auto FTP File transfer
• NEW SRT Live Streaming Protocol (optional selection ZIXI or SRT) also RTMPS Protocol available
• Backup to SSD*
• NTP Time server supported

Items Included:

Battery

            Yes, BN-VC296G

AC/DC adapter

            Yes, AC Adapter

Cable 1

            Yes, the Power cord

Additionals

            Yes, Wireless Antennas 2x, Lens Cap

Product Highlights:

• 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
• Newly-developed 4K lens with 20x zoom
• Sports and Broadcast overlay on video and streaming
• High performance 1080 60p/50p live streaming

More Information

SPECS

White Balance Modes: FAW, AWA, 3200K, 5600K, Manual

Color Matrix adjustment: Yes

Wide Dynamic Range Mode (WDR): Yes

HDR (High Dynamic Range): Yes, HLG/JLOG 1

LOG Mode: Yes, J-LOG HLR

User-selected function buttons: Yes

User Customizes Menu: Yes

Optical Specifications:

Lens mount: Internal

Optical Zoom X times: 20

Dynamic Zoom x times: 40

Lens F Number: 2.8 to 4.5

Lens Ratio From / To: 9.43mm to 188.6mm

Lens ratio equivalent to 35mm: 28mm to 560mm

Auto Focus: Yes

Optical Image Stabilization: Yes

Filter Diameter in mm: 82mm

Built-in ND Filters: 3 Filters: 1/4, 1/16, 1/64 plus OPEN

Recording Formats:

Media: SDHC/SDXC memory card x 2 plus M2 SSD Slot with Adapter* optional

Media Class: 4K/70 Mbps, HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)

Recording Slots: 3

Encoder: ProRes, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)

ProRes Recording: Yes

File Format MOV: Yes

File Format MP4: Yes

File Format MXF: Yes

Video Codec MPEG2 Long GOP: Yes

Video Codec MPEG4 AVC/H264 4K/HD: Yes

Video Codec H264 (SD): Yes

Video Codec others: 4K UHD ProRes / Proxy H264
