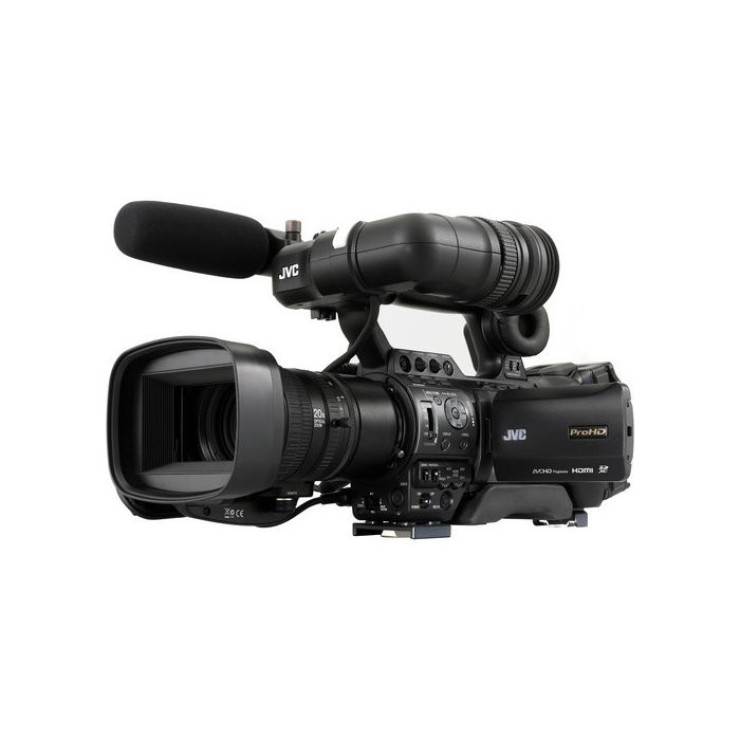

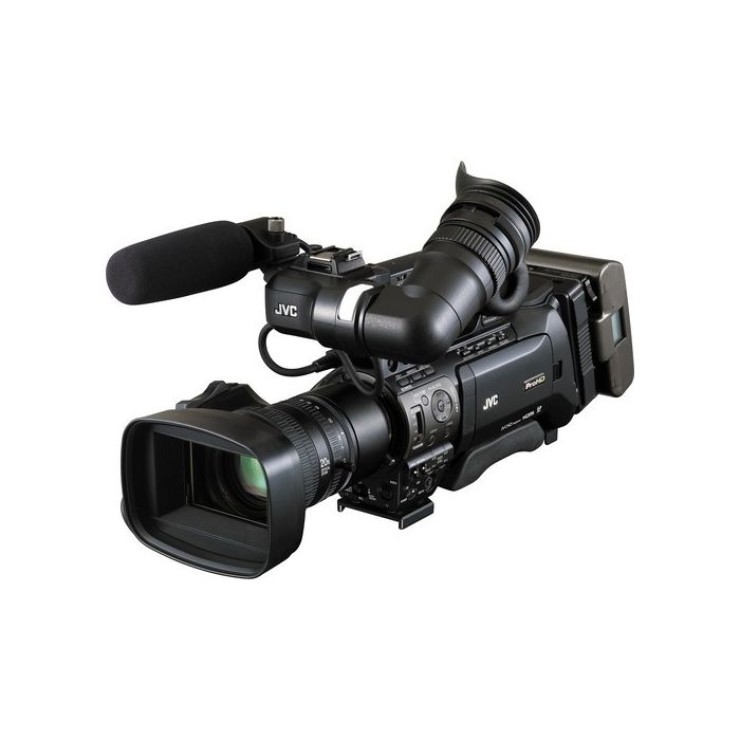

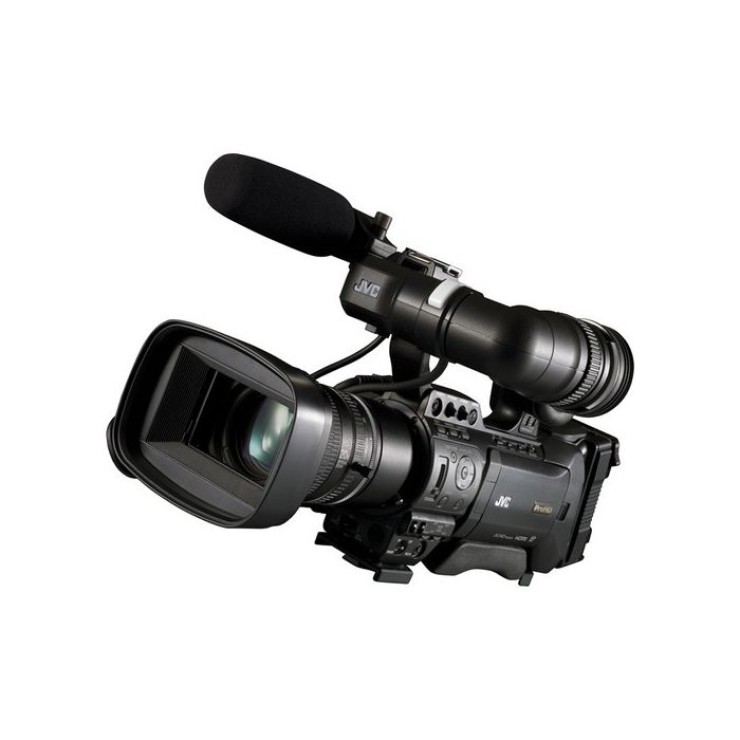

JVC GY-HM890 COMPACT SHOULDER MOUNT CAMCORDER

The GY-HM890 is a very nicely-weighted shoulder-mount form factor camera, also designed for use as an HD studio camera or multi-camera field production camera. It features a new interchangeable Fujinon 20x autofocus zoom lens, with auto focus, built-in optical image stabilisation and chromatic aberration correction, while the interchangeable 1/3-inch bayonet lens also includes manual focus and iris rings. The camera is also available as a version without lens (GY-HM890CHE), enabling you to use your own 1/3” lenses. The GY-HM890 provides outstanding full HD image capture and delivery, while the built-in streaming engine, FTP and GSM connectivity allows live HD transmission directly from the camera without requiring additional encoding hardware.

The camera features three, 1/3-inch 2.07 effective megapixel CMOS sensors, capturing full 1920x1080 images. The imagers provide 12-bit processing, F12 sensitivity (50Hz) and excellent signal-to-noise ratio to produce superior colour reproduction. The GY-HM890 has a multi-pin connection that accommodates JVC fibre or multi-core camera modules and is compatible with a full range of studio components, including customised studio sled, zoom and focus controls, CCUs and 8.4-inch LCD viewfinder, as well as box-style lenses from Canon and Fujinon. It includes an HD/SD-SDI pool feed input that can record and stream video and audio from another camera or SDI source during press conferences or other pool feed environments. It also supports LANC remote controllers as well as JVC’s proprietary wired remote control system.

Continuing JVC’s commitment to native file workflows, the GY-HM890 records HD or SD footage as Final Cut Pro (.MOV), XDCAM EX (.MP4), AS-10 (.MXF), AVCHD (.MTS), or H.264 (.MOV) files for compatibility with most major NLE systems. Footage can be recorded using MPEG-2 or H.264 compression at a variety of bit rates, frame rates, and resolutions. Dual codecs offer simultaneous recording of a full HD file on one memory card and smaller, web friendly H.264 files on the other. Plus, a new H.264 Extreme High Quality (XHQ) recording mode, commonly used in HD SLRs, offers virtually lossless H.264 50 Mbps recording.

Dual SDHC/SDXC card slots allow simultaneous recording (for instant client copy/backup) or relay recording (for continuous shooting) to low cost, non-proprietary media. During simultaneous recording, one card can act as a continuous backup that overrides the pause function triggered by the operator. Relay recording allows virtually unlimited recording capability in the field.

The 800 Series cameras significantly expand on the live HD streaming and file transfer capabilities introduced in the popular GY-HM650 mobile news camera. JVC’s exclusive dual codec design allows the new cameras to transmit live HD footage or transfer files in the background while users continue to record footage in their normal workflow. When paired with a GSM modem or Wi-Fi adapter, which is connected directly to the camera via USB, the camera transmits footage to a facility in real time. JVC provides different stream protocols to maximize the streaming results: UDP, TCP, RTP/RTSP, ZIXI. The Advanced Streaming Technology (AST) feature provides content-aware error correction, bandwidth shaping, and real-time feedback of streaming status.

The camera provides secure FTP file transfer on location, as well as live monitoring and extensive camera and lens control via Wi-Fi from a smartphone (iPhone, Android), tablet (iPad, Android), PC or Mac. For broadcasters who use metadata, a built-in GPS allows location information to be recorded. Plus, metadata can be edited on a smartphone or tablet and transferred to the camera via Wi-Fi. The GY-HM890 is also compatible with Advanced Streaming Services, powered by Zixi, for reliable live content delivery.

The GY-HM890 includes genlock and time code terminals for multi-camera setups, HD/SD-SDI out, HDMI out, 3.5mm stereo headphone jack, and a four-channel audio system with stereo AUX inputs and two XLR mic/line inputs with phantom power. Other features include 12 assignable user buttons, 10-second Pre Rec (retro cache), focus assist, interval recording for time lapse footage and variable frame rate recording for over/under crank effects.

Items Included:

• JVC GY-HM890 ENG / Studio Camcorder
• Viewfinder
• Anton Bauer Battery Plate
• Shotgun Microphone
• Limited 3-Year Warranty

Product Highlights:

• Three 1/3" CMOS Sensors
• Full HD 1920x1080 up to 60p
• Modular Design for Field/Studio Use
• MPEG-2/AVCHD Recording and Dual Codec
• H.264 Recording up to 50 Mbps
• Dual SDHC/SDXC Memory Card Slots
• HD-SDI Input / 3G-SDI & HDMI Output
• Genlock & Timecode
• Built-In Network Protocols
